Figuresse Design Bathroom Range

Twist

Figuresse Design Bathroom Range - Twist

+

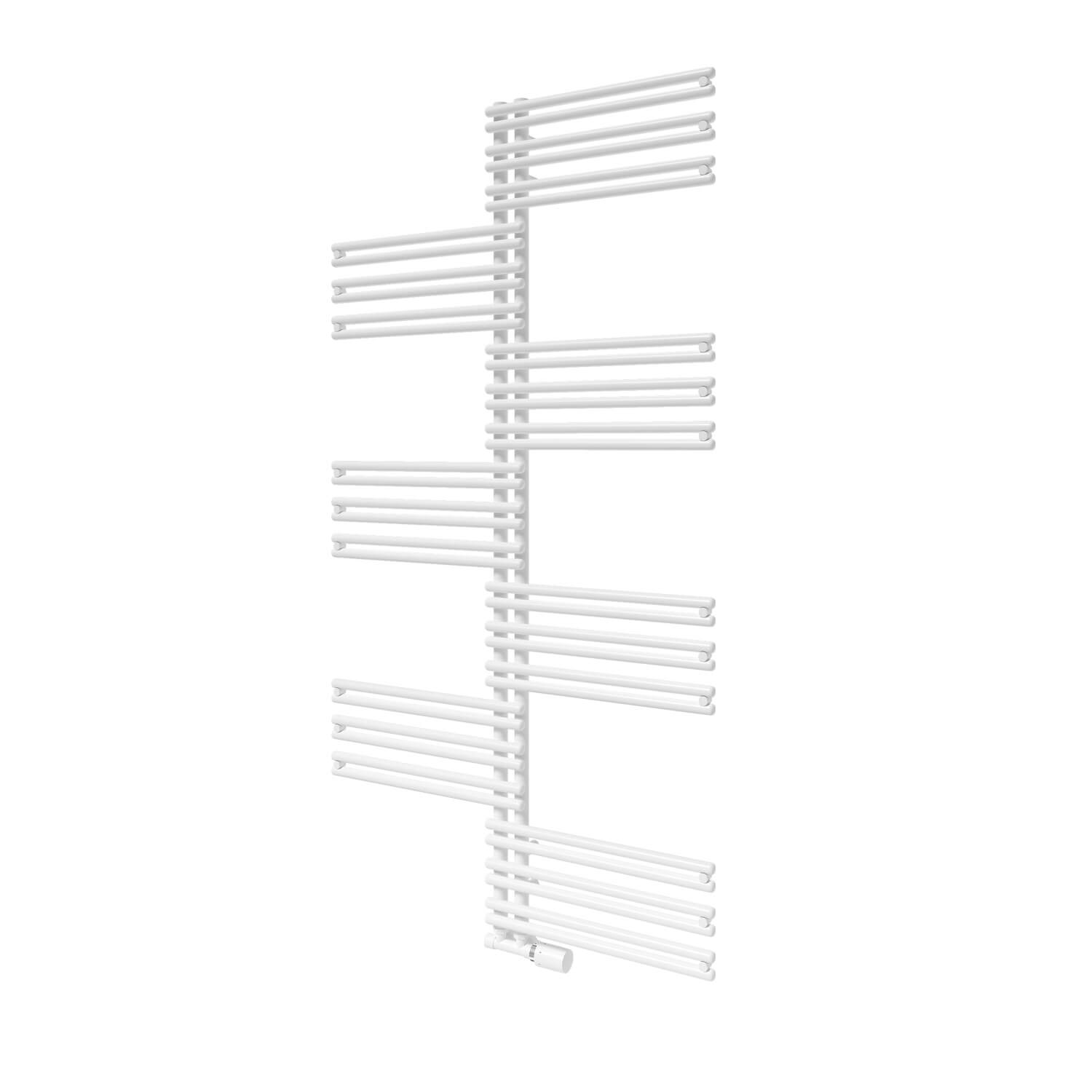

TWIST

The Twist consists of round heating tubes that are grouped into individual sections which are oriented both to the left and to the right. The perfect balance for everyday use with enough space to comfortably dry your towels

FEATURES

  • Provides plenty of space for drying towels
  • Rotatable left or right design
  • Simple and user-friendly control
  • Classic centre connection for easy installation
  • Available in hydronic, electric and dual fuel versions

HYDRONIC VERSIONS


Gloss White
(RAL 9016)

Matt Jet Black
(RAL 9005)

Matt Anthracite Grey
(RAL 7016)



ELECTRIC VERSIONS


Gloss White
(RAL 9016)



ACCESSORIES:

  • FCIR Remote (Optional extra with Duel-Fuel functionality)
  • PTC Heating Cartridge with P-Switch (required for Dual-Fuel capability) 300/400/600W (white only)
    T-Piece for Heating Cartridge
  • Angle and/or Straight Valve Body with Design cover (Available in White, Chrome and Matt Stainless steel)
  • Valve Set VHX-D/RAX angle (Available in White and Chrome)
  • Angled and/or Straight Valve Body inlc. TH Head (available in Chrome, White, Jet Black and Anthracite Grey)
  • Adaptor for G1/2” (chrome)

Electric products are fitted with a European style plug & power cable. Refer to the instruction manual and consult with an installer to ensure product can be correctly installed prior to purchasing.

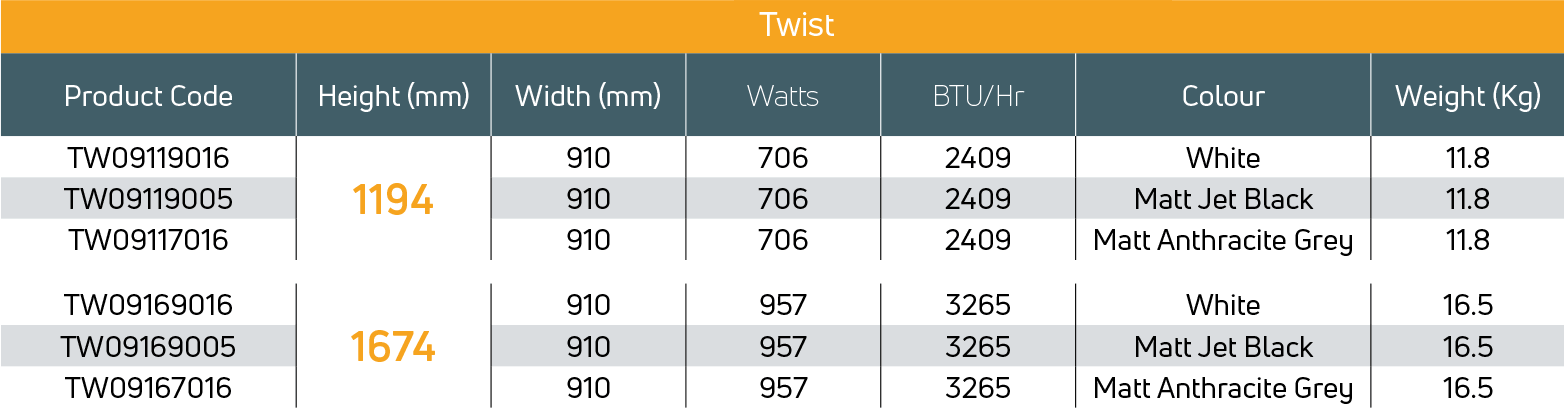

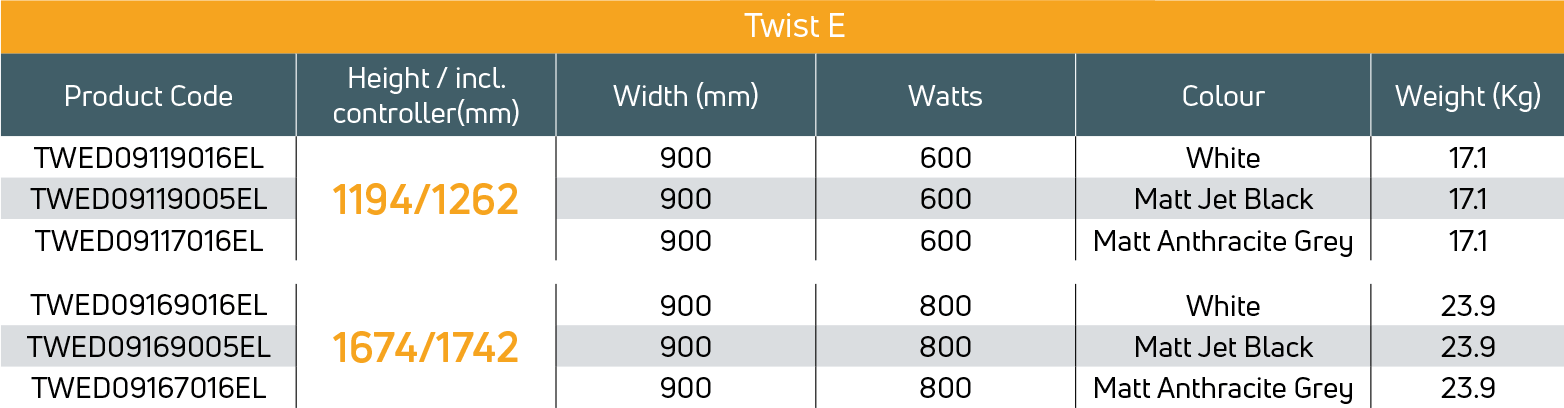

Heat outputs and dimensions

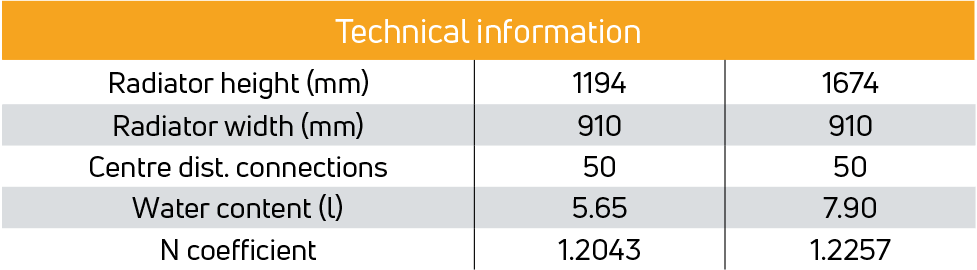

Technical information

Technical drawings

Twist

Twist E

A (mm) B (mm)
500 1194
600 1194
500 1514
600 1514
500 1834
600 1834

Stock Profile Brochure - July 2022

Stock Profile Brochure - July 2022
Version imprimable
PDF: 13.98 MB

All Figuresse Radiators have a 5 year warranty Period and 2 year Warranty Period on Electric Components.

Accessories to be confirmed.
