Towel warmers - Flores Curved

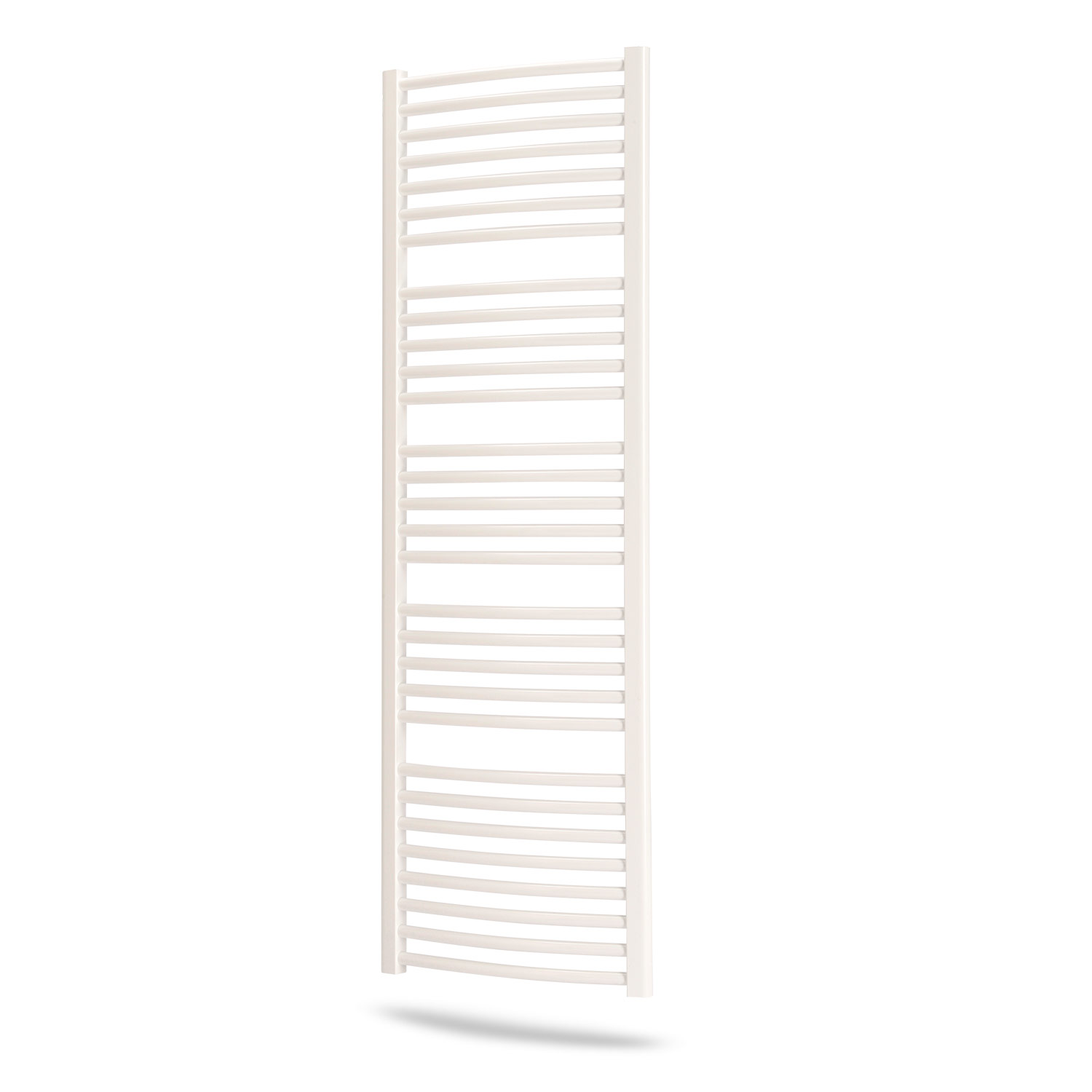

This curved version of the Flores model has fine round integrated horizontal tubes.

+
Height (mm) 547 - 770 - 862 - 1150 - 1222 - 1430 - 1537 - 1755 - 1807
Width (mm) 500 - 600 - 750
Accessories: brackets, 1 radiator plug, 1 airvent, screws and plugs.
Installation: 4 adjustable hanging brackets to block between the pipes. These brackets are standard white. Chrome for radiators in colour.
Connection: 2 x diameter 1/2" (15/21)
or 4 x diameter 1/2" (15/21) for Flores C M
Colour: standard colour is white RAL 9016.
Available as dual fuel: PCE450W
Working pressure : 8 bar
Max. working temperature : 110 °C
Guanrantee: 10 Years

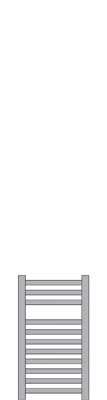

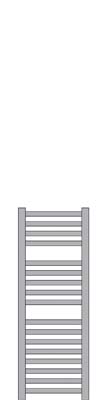

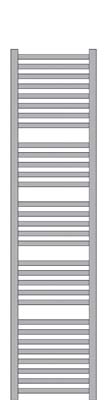

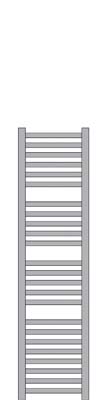

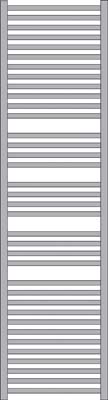

Radiators types

FLC08../
FLO547..M/
FLO08..CH

FLC12../
FLO862..M/
FLO12..CH

FLC15../
FLC1222..M/
FLC15..CH

FLC18../
FLC1537..M/
FLC18..CH

FLC1807..M

Heat outputs and dimensions

Flores C

type A B C weight volume 75/65/20°C 55/45/20°C £
(kg) (l) (watt) (watt)
FLC0805 455 770 500 7.00 3.54 362 191 156.84
FLC0806 555 770 600 7.70 4.04 426 226 165.79
FLC1205 455 1150 500 10.10 5.20 528 279 189.80
FLC1206 555 1150 600 11.30 5.92 621 328 202.54
FLC1506 555 1430 600 14.00 7.30 764 403 230.39
FLC1806 555 1755 600 16.90 8.84 931 492 264.75

Flores C Chrome

type A B C weight volume 75/65/20°C 55/45/20°C £
(kg) (l) (watt) (watt)
FLC0805CH 455 770 500 7.00 3.58 258 134 188.58
FLC0806CH 555 770 600 7.70 4.08 296 154 196.88
FLC1205CH 455 1150 500 10.10 5.25 354 186 229.32
FLC1206CH 555 1150 600 11.30 5.96 423 222 241.35
FLC1506CH 555 1430 600 14.00 7.34 508 268 297.65
FLC1806CH 555 1755 600 16.90 8.89 635 337 370.44

Flores C Mid Connection

type A B C weight volume 75/65/20°C 55/45/20°C £
(kg) (l) (watt) (watt)
FLC05470500M 50 547 500 4.10 2.60 266 142 196.88
FLC08620500M 50 862 500 6.20 3.90 397 211 237.33
FLC12220500M 50 1222 500 8.80 5.50 552 292 275.62
FLC12220600M 50 1222 600 10.20 6.20 647 343 292.59
FLC12220750M 50 1222 750 11.30 7.40 790 420 305.16
FLC15370500M 50 1537 500 11.00 6.90 689 363 320.46
FLC15370600M 50 1537 600 12.70 7.90 804 425 325.93
FLC15370750M 50 1537 750 15.30 9.40 976 518 357.65
FLC18070500M 50 1807 500 13.10 8.10 830 436 340.15
FLC18070600M 50 1807 600 14.90 9.20 962 508 348.89
FLC18070750M 50 1807 750 17.60 10.90 1161 616 366.39

according EN 442 - 75/65/20 ˚C (ΔT 50) and 55/45/20 ˚C (ΔT 30)
To calculate from Watts to BTU’s multiply by 3.412 (1000 watts x 3.412 = 3,412 btu’s).

Types of connections

Flores C

Flores C CH

Flores C M

Supply and return always at the bottom, can be switched left/right.

Corrective factors

Corrective ratios

°C Factor °F
40°C 0.75 72°F
45°C 0.88 81°F
50°C 1 90°F
55°C 1.13 99°F
60°C 1.25 108°F
65°C 1.39 117°F
70°C 1.51 126°F

Brackets

Flores C

Flores C CH

Flores C M

A=centre-to-centre connections
B=height
C=width

Accessories

V-KNOB

- per pair

white, PATVRBL, 12.77 £
chrome, PATVRCH, 12.77 £

TOWEL RING

white, ANORBL, 33.39 £
chrome, ANORCH, 33.39 £

ROUND KNOBS

- per pair

white, PATRBL, 12.77 £
chrome, PATRCH, 12.77 £

TOWEL RAIL curved 370 mm

length radiator min. 500 mm
white, BARR40CBL, 29.46 £
chrome, BARR40CCH, 29.46 £

TOWEL RAIL curved 470 mm

length radiator min. 600 mm
white, BARR50CBL, 33.39 £
chrome, BARR50CCH, 33.39 £

Stock Profile Brochure - July 2017

Flores Curved White Mid Connection Specials - July 2017

Flores Curved Chrome Specials - July 2017

Flores Curved White Specials - July 2017

Each PURMO is guaranteed for ten years from the date of installation against defects caused by faulty materials or manufacture. We replace the defective product with a similar or technically corresponding convector.

The guarantee does not cover damages that are due to faulty storage and handling at delivery or installation, nor damages that are due to faulty use of the convector, such as inside and outside rust, use of corrosive substances, too high pressure or damage due to freezing.

This guarantee does not cover incidental damages caused by the Purmo product, costs for change of product, production loss of the customer, loss of profit or other indirect costs.

In case of a guarantee claim the buyer must contact the seller and present some kind of evidence of purchase of the product, for example, order confirmation or delivery note.

The defective product always has to be sent back to Purmo for inspection within one month from the date of complaint, if not otherwise agreed upon.
