The Compact is one of the most energy efficient designs on the market. It only requires a small amount of water to function; it heats up very quickly and is easy to control. The large convector plate within the design means that heat is expelled across a greater surface area, distributing heat more effectively around the room.

With straight lines and quality finishing, the Compact is a sleek asset to both traditional and contemporary interiors. The radiator is hardwearing because of its smooth and solid scratch resistant coating, and easy to clean.

Purmo Compact radiators are now available as BIM components, please visit BIMStore to download today.

+

Information

Structure: EN442.1 and 2
Materiał: Cold rolled steel
Surface process: The radiator is alkalic degreased, phosphated, dipped in primer (electrical), coated in polyester-epoxy resin powder, stoved (about 200°C). The surface process follows the standard DIN 55900.
Colour: White, RAL 9016
Working pressure: 10 bar
Quality standard: SFS-EN ISO 9002
Heights (mm): 300, 450, 600, 700
Lengths (mm): 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1400, 1600,1800, 2000, 2300, 2600, 3000
Water temperature: 0°C - 120°C
pH value: between 7 - 9
Systems: To be used on two pipe, indirect or closed circuit heating systems complying with BS 5449: 1990. On completion, the system should be cleaned out in accordance with BS 7593: 1992 and BS 5449: 1990.
Guarantee: Ten years

Radiators types

Type 11

Type 21s

Type 22

Type 33



Type 11, Type 21s, Type 22, Type 33

Heat outputs and dimensions

Length Watt Type 11
Height 300 450 600 700
400 75/65/20 218 316 407 464
400 BTU 745 1078 1389 1583
500 75/65/20 273 395 509 581
500 BTU 932 1348 1737 1982
600 75/65/20 328 474 611 697
600 BTU 1119 1617 2085 2378
700 75/65/20 382 553 713 813
700 BTU 1304 1887 2433 2774
800 75/65/20 437 632 814 929
800 BTU 1491 2156 2777 3170
900 75/65/20 491 711 916 1045
900 BTU 1677 2426 3125 3566
1000 75/65/20 546 790 1018 1161
1000 BTU 1863 2695 3473 3961
1100 75/65/20 601 869 1120 1277
1100 BTU 2050 2965 3821 4357
1200 75/65/20 655 948 1222 1393
1200 BTU 2236 3235 4169 4753
1300 75/65/20 710 1027 1304 1509
1300 BTU 2423 3504 4449 5149
1400 75/65/20 764 1106 1425 1625
1400 BTU 2609 3774 4862 5545
1600 75/65/20 874 1264 1629 1858
1600 BTU 2982 4313 5558 6339
1800 75/65/20 983 1422 1832 2090
1800 BTU 3354 4852 6251 7131
2000 75/65/20 1092 1580 2036 2322
2000 BTU 3726 5391 6947 7923
2300 75/65/20 1256 1817 2342 2670
2300 BTU 4286 6200 7991 9114
2600 75/65/20 1420 2054 2647 3019
2600 BTU 4845 7010 9034 10302
3000 75/65/20 1638 2370 3054 3483
3000 BTU 5590 8089 10423 11887



Length Watt Type 21S
Height 450 600
400 75/65/20 424 536
400 BTU 1447 1829
500 75/65/20 530 670
500 BTU 1808 2286
600 75/65/20 636 804
600 BTU 2170 2743
700 75/65/20 742 938
700 BTU 2532 3200
800 75/65/20 843 1072
800 BTU 2876 3658
900 75/65/20 954 1206
900 BTU 3255 4115
1000 75/65/20 1060 1340
1000 BTU 3617 4572
1100 75/65/20 1166 1474
1100 BTU 3978 5029
1200 75/65/20 1272 1608
1200 BTU 4340 5486
1300 75/65/20 1378 1742
1300 BTU 4702 5944
1400 75/65/20 1484 1876
1400 BTU 5063 6401
1600 75/65/20 1696 2144
1600 BTU 5787 7315
1800 75/65/20 1908 2412
1800 BTU 6510 8230
2000 75/65/20 2120 2680
2000 BTU 7233 9144
2300 75/65/20 2544 3082
2300 BTU 8680 10516
2600 75/65/20 2756 3484
2600 BTU 9406 11891
3000 75/65/20 3180 4020
3000 BTU 10853 13720



Length Watt Type 22
Height 300 450 600 700
400 75/65/20 384 539 684 777
400 BTU 1312 1839 2334 2651
500 75/65/20 481 674 855 971
500 BTU 1640 2300 2917 3313
600 75/65/20 577 808 1025 1165
600 BTU 1969 2757 3497 3975
700 75/65/20 673 943 1196 1359
700 BTU 2296 3218 4081 4637
800 75/65/20 769 1078 1367 1554
800 BTU 2624 3678 4664 5302
900 75/65/20 865 1212 1538 1748
900 BTU 2952 4135 5248 5964
1000 75/65/20 961 1347 1709 1942
1000 BTU 3279 4596 5831 6626
1100 75/65/20 1057 1482 1880 2136
1100 BTU 3608 5057 6415 7288
1200 75/65/20 1153 1616 2051 2330
1200 BTU 3936 5514 6998 7950
1300 75/65/20 1249 1750 2222 2524
1300 BTU 4264 5971 7581 8612
1400 75/65/20 1345 1886 2393 2719
1400 BTU 4592 6435 8166 9277
1600 75/65/20 1538 2155 2734 3107
1600 BTU 5248 7353 9328 10601
1800 75/65/20 1730 2425 3076 3498
1800 BTU 5904 8274 10495 11935
2000 75/65/20 1922 2694 3418 3884
2000 BTU 6558 9192 11662 13256
2300 75/65/20 2210 3097 3931 4467
2300 BTU 7544 10567 13413 15245
2600 75/65/20 2499 3505 4443 5049
2600 BTU 8528 11962 15165 17233
3000 75/65/20 2883 4044 5127 5826
3000 BTU 9840 13802 17498 19884



Length Watt Type 33
Height 300 450 600 900
400 75/65/20 539 680 942 1304
400 BTU 1839 2319 3216 4451
500 75/65/20 674 850 1178 1630
500 BTU 2299 2899 4021 5563
600 75/65/20 808 1019 1414 1956
600 BTU 2758 3479 4825 6676
700 75/65/20 943 1189 1649 2282
700 BTU 3218 4059 5629 7788
800 75/65/20 1078 1359 1885 2608
800 BTU 3678 4639 6433 8901
900 75/65/20 1212 1529 2120 2934
900 BTU 4138 5219 7237 10014
1000 75/65/20 1347 1699 2356 3260
1000 BTU 4597 5799 8041 11126
1200 75/65/20 1616 2039 2827 3912
1200 BTU 5517 6958 9649 13352
1400 75/65/20 1886 2379 3298 4564
1400 BTU 6436 8118 11257 15577
1600 75/65/20 2155 2718 3770 5216
1600 BTU 7356 9278 12866 17802
1800 75/65/20 2425 3058 4241 5868
1800 BTU 8275 10438 14474 20027
2000 75/65/20 2694 3398 4712 6520
2000 BTU 9195 11597 16082 22253
2300 75/65/20 3098 3908 5419 7498
2300 BTU 10574 13337 18494 25591
2600 75/65/20 3502 4417 6126 8476
2600 BTU 11953 15077 20907 28929
3000 75/65/20 4041 5097 7068 9780
3000 BTU 13792 17396 24123 33379

Water capacity and weight

Volume : L / m

type 300 450 600 700 900
11 1,50 2,30 3,40 3,66
21S 4,80 6,10
22 3,20 4,80 6,10 7,49
33 5,10 7,00 8,80 13,00

Weight : kg / m

type 300 450 600 700 900
11 9,00 14,40 19,50 21,90
21s 21,80 28,40
22 16,40 24,30 32,70 39,14
33 24,20 37,40 51,10 77,40

Types of connections

One endconnection:

Top-bottom one end connection requires external flow and return valves.

Opposite ends connection:

Top-bottom opposite ends connection requires external flow and return valves.

Bottom connection:

Bottom connection (Pre-plumbed). Thanks to the built-in valve system, connection at the bottom is possible. Bottom right hand connection is standard, but left hand connection is possible if specified at time of order.

Brackets

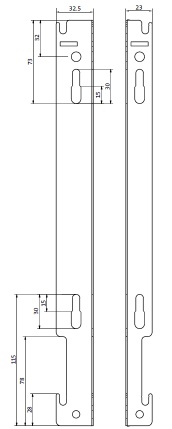

Bracket dimensions in mm






Corrective factors

Corrective ratios

°C Factor °F
40°C 0.75 72°F
45°C 0.88 81°F
50°C 1 90°F
55°C 1.13 99°F
60°C 1.25 108°F
65°C 1.39 117°F
70°C 1.51 126°F

Stock Profile Brochure - July 2017

Compact Specials Brochure - July 2017

Each PURMO is guaranteed for ten years from the date of installation against defects caused by faulty materials or manufacture. We replace the defective product with a similar or technically corresponding convector.

The guarantee does not cover damages that are due to faulty storage and handling at delivery or installation, nor damages that are due to faulty use of the convector, such as inside and outside rust, use of corrosive substances, too high pressure or damage due to freezing.

This guarantee does not cover incidental damages caused by the Purmo product, costs for change of product, production loss of the customer, loss of profit or other indirect costs.

In case of a guarantee claim the buyer must contact the seller and present some kind of evidence of purchase of the product, for example, order confirmation or delivery note.

The defective product always has to be sent back to Purmo for inspection within one month from the date of complaint, if not otherwise agreed upon.
