Panels - LST

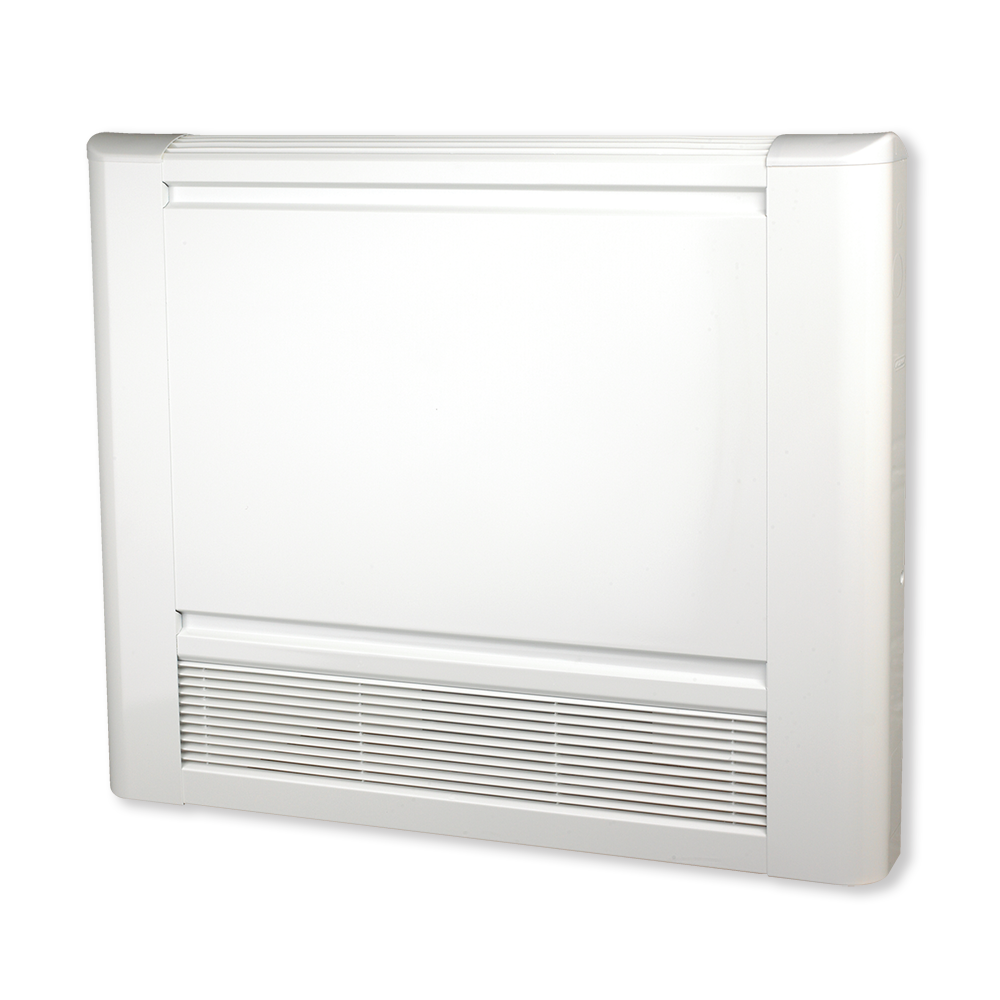

The Purmo LST provides the perfect solution in applications where a low surface temperature is required for safety reasons. The Purmo LST ensures that the surface temperature of the radiator remains under 43oc, so is ideal for situations where young children are present such as nurseries and schools.

Now available in a slim 420mm wide version.

+

Information :

Heigth (mm) 572 - 672 - 872
Length(mm) 420 - 600 - 800 - 1000 - 1200 - 1400 - 1600 - 1800 - 2000
Connections 4 x diameter 1/2"
Installation 4 or 6 welded-on hanging strips
Accessories Outer casing, wall brackes, installaton instructions, fixing templates, individually packed radiator, brackets, plug and air vent
Packaging The radiators are factory packed in heat shrinkable film. The radiators are protected with cardboard carton.
Guarantee 10 Years

Radiators types

Heat outputs and dimensions

Description
Code		 Dimensions of the casing (mm) Dimensions of the emitter (mm) Total weight (kg) Output EN 442
ΔT 50
Height Length Height Length Watt BTU
LST11 572 800 550 800 300 600 12.10 277 946
LST11 572 1000 550 1000 300 800 15.22 370 1261
LST11 572 1200 550 1200 300 1000 18.45 462 1576
LST11 572 1600 550 1600 300 1400 24.80 647 2207
LST11 572 2000 550 2000 300 1800 31.07 832 2837
LST11 672 420 650 420 400 300 7.43 182 621
LST11 672 600 650 600 400 400 11.02 243 830
LST11 672 800 650 800 400 600 14.90 365 1245
LST11 672 1000 650 1000 400 800 18.80 486 1660
LST11 672 1200 650 1200 400 1000 22.69 608 2074
LST11 672 1400 650 1400 400 1200 26.62 730 2489
LST11 672 1600 650 1600 400 1400 30.56 851 2904
LST11 672 1800 650 1800 400 1600 34.53 973 3319
LST11 672 2000 650 2000 400 1800 38.40 1094 3734
LST11 872 420 850 420 600 300 10.15 265 904
LST11 872 600 850 600 600 400 15.32 353 1205
LST11 872 800 850 800 600 600 20.90 530 1808
LST11 872 1000 850 1000 600 800 26.50 706 2410
LST11 872 1200 850 1200 600 1000 32.09 883 3013
LST11 872 1400 850 1400 600 1200 37.73 1060 3615
LST11 872 1600 850 1600 600 1400 43.37 1236 4218
LST11 872 1800 850 1800 600 1600 49.04 1413 4820
LST11 872 2000 850 2000 600 1800 54.62 1589 5423
LST22 572 800 550 800 300 600 17.92 545 1861
LST22 572 1000 550 1000 300 800 22.70 727 2481
LST22 572 1200 550 1200 300 1000 27.50 909 3102
LST22 572 1600 550 1600 300 1400 37.12 1273 4342
LST22 572 2000 550 2000 300 1800 46.74 1636 5583
LST22 672 420 650 420 400 300 10.61 351 1198
LST22 672 600 650 600 400 400 16.28 468 1597
LST22 672 800 650 800 400 600 22.36 702 2395
LST22 672 1000 650 1000 400 800 28.44 936 3194
LST22 672 1200 650 1200 400 1000 34.52 1170 3992
LST22 672 1400 650 1400 400 1200 40.61 1404 4790
LST22 672 1600 650 1600 400 1400 46.74 1638 5589
LST22 672 1800 650 1800 400 1600 52.88 1872 6387
LST22 672 2000 650 2000 400 1800 58.94 2106 7186
LST22 872 420 850 420 600 300 14.78 494 1686
LST22 872 600 850 600 600 400 23.04 659 2249
LST22 872 800 850 800 600 600 31.88 989 3374
LST22 872 1000 850 1000 600 800 40.72 1318 4498
LST22 872 1200 850 1200 600 1000 49.59 1648 5623
LST22 872 1400 850 1400 600 1200 58.44 1978 6748
LST22 872 1600 850 1600 600 1400 67.33 2307 7872
LST22 872 1800 850 1800 600 1600 76.24 2637 8997
LST22 872 2000 850 2000 600 1800 85.06 2966 10121

Water capacity and weight

Type 11

Length (mm) Height 550 mm
 Height 650mm
Height 850mm
Weight (kgs)
 Water Content (l)
 Weight (kgs)
 Water Content (l)
 Weight (kgs)
 Water Content (l)
420
 7.43 0.63 10.15 0.90
600
 11.02 0.84 15.32 1.20
800
 12.10 1.02 14.90 1.26 20.90 1.80
1000
 15.22 1.36 18.80 1.68 26.50 2.40
1200
 18.45 1.70 22.69 2.10 32.09 3.00
1400
 26.62 2.52 37.73 3.60
1600
 24.80 2.38 30.56 2.94 43.37 4.20
1800
 34.53 3.36 49.04 4.80
2000
 31.07 3.06 38.40 3.78 54.62 5.40

Type 22

Length (mm) Height 550 mm
 Height 650mm
Height 850mm
Weight (kgs)
 Water Content (l)
 Weight (kgs)
 Water Content (l)
 Weight (kgs)
 Water Content (l)
420
10.61 1.29 14.78 1.86
600
 16.28 1.72 23.04 2.48
800
 17.92 2.04 22.36 2.58 31.88 3.72
1000
 22.70 2.72 28.44 3.44 40.72 4.96
1200
 27.50 3.40 34.52 4.30 49.59 6.20
1400
 40.61 5.16 58.44 7.44
1600
 37.12 4.76 46.74 6.02 67.33 8.68
1800
 52.88 6.88 76.24 9.92
2000
 46.74 6.12 58.94 7.74 85.06 11.16

Types of connections

Purmo LST radiators can be fitted with two types of thermostatic radiator valves:

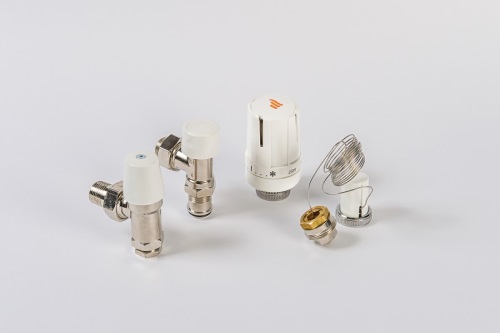

Close Coupled TRV Kit (UK Patent No 2259758)

Suitable for TBOE or BOE connections.
This arrangement offers a choice of positions for both the valve body and sensor head.
The kit allows the thermal sensing head of a PURMO Thermostatic Radiator Valve to be mounted directly on the top left/right hand side of the LST enclosure. The point of fitting has been half-sheared and requires only to be knocked out to facilitate easy installation, becoming an integral part of the appliance.
The valve body is fitted to the heat emitter and is coupled to the sensing head by a flexible capillary extension lead.

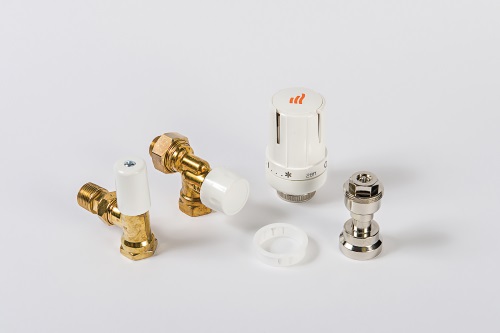

Direct Fit TRV Kit

Suitable for TBOE connection only.
This kit allows a PURMO TRV body to be directly fitted to the radiator, with the thermostatic head projecting beyond the enclosure.


Brackets

Corrective factors

Corrective ratios

°C Factor °F
40°C 0.75 72°F
45°C 0.88 81°F
50°C 1 90°F
55°C 1.13 99°F
60°C 1.25 108°F
65°C 1.39 117°F
70°C 1.51 126°F

Stock Profile Brochure - January 2018

Stock Profile Brochure - January 2018
PDF: 5.03 MB
Download See online Add to basket

Purmo LST Close Coupled TRV Kit

Purmo LST Close Coupled TRV Kit
PDF: 0.15 MB
Download See online Add to basket

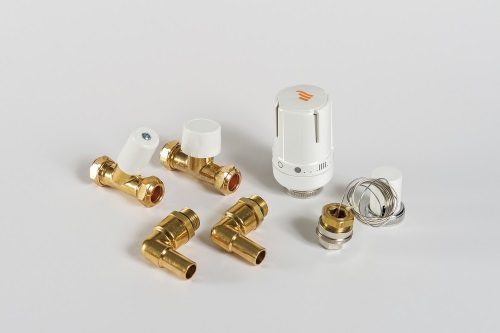

Purmo LST Close Coupled TRV Kit (420)

Purmo LST Close Coupled TRV Kit (420)
PDF: 0.16 MB
Download See online Add to basket

Purmo LST Direct Fit Kit

Purmo LST Direct Fit Kit
PDF: 0.14 MB
Download See online Add to basket

Each PURMO is guaranteed for ten years from the date of installation against defects caused by faulty materials or manufacture. We replace the defective product with a similar or technically corresponding convector.

The guarantee does not cover damages that are due to faulty storage and handling at delivery or installation, nor damages that are due to faulty use of the convector, such as inside and outside rust, use of corrosive substances, too high pressure or damage due to freezing.

This guarantee does not cover incidental damages caused by the Purmo product, costs for change of product, production loss of the customer, loss of profit or other indirect costs.

In case of a guarantee claim the buyer must contact the seller and present some kind of evidence of purchase of the product, for example, order confirmation or delivery note.

The defective product always has to be sent back to Purmo for inspection within one month from the date of complaint, if not otherwise agreed upon.
