Towel warmers - Flores

A wonderful design with fine, round pipe elements.

PrevNext

Information:

Height (mm) 547 - 862 - 1222 - 1537 - 1807
Length (mm) 500 - 600 - 750
Connections 2 x diameter 1/2" (15/21)

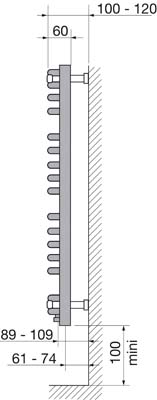

Installation 3 adjustable hanging brackets to block between the pipes.
Accessories Brackets, 1 blind stop, 1 airvent,
mounted injection pipe, screws and plugs.
Packaging The radiators are factory packed in heat shrinkable film. The radiators corners are protected with the plastic covering.
Guarantee 10 Years

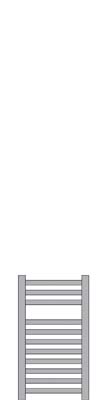

  1. FL0505 / FL0505M (Mid Connection)

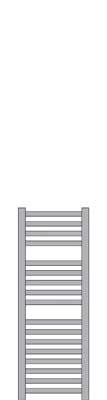

  2. FL0508 / FL0508M(Mid Connection) / FL0508CH (Chrome)

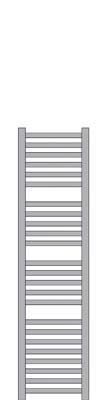

  3. FL..12 / FL..12M (Mid Connection) / FL0512CH(Chrome)

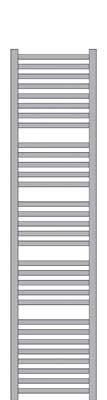

  4. FL..15 / FL..15M (Mid Connection) / FL0615CH (Chrome)

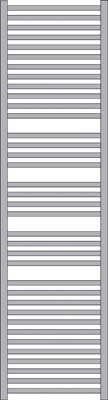

  5. FL..18 / FL..18M (Mid Connection) / FL..18CH(Chrome)



1.2.  3. 4.   5.









Flores

Length Height Centre-to-centre
connections		 Weight Volume 75/65/20 BTU
500 547 455 4,10 2,60 257 877
500 862 455 6,20 3,90 417 1423
500 1222 455 8,80 6,10 576 1966
600 1222 555 11,30 6,80 676 2307
750 1222 705 13,50 8,10 826 2819
600 1537 555 12,70 8,60 842 2874
750 1537 705 15,30 10,20 1030 3515
500 1807 455 13,10 8,80 866 2956
600 1807 555 14,90 10,10 1014 3461

Flores Chrome

Length Height Centre-to-centre
connections		 Weight Volume 75/65/20 BTU
500 547 455 4,00 2,68 265 904
500 862 455 6,10 3,90 277 945
500 1222 455 8,60 6,10 395 1348
600 862 555 7,10 4,40 336 1147
600 122 555 10,40 6,10 474 1618
600 1537 555 11,80 8,60 586 2000
600 1807 555 15,50 10,10 705 2406
750 1222 705 12,40 7,10 574 1959
750 1537 705 15,30 9,40 725 2474
750 1807 705 17,60 12,00 864 2949

Flores Mid Connection

Length Height Centre-to-centre
connections		 Weight Volume 75/65/20 BTU
500 547 50 4,00 2,60 266 908
500 862 50 6,50 3,90 397 1355
500 1222 50 9,10 6,10 552 1884
600 1222 50 11,30 6,80 676 2307
750 1222 50 13,50 8,10 826 2819
500 1537 50 12,40 7,40 718 2451
600 1537 50 12,70 8,60 804 2744
750 1537 50 15,30 10,20 976 3331
500 1807 50 13,10 8,80 830 2833
600 1807 50 14,90 10,10 962 3283
750 1807 50 17,60 12,00 1161 3962

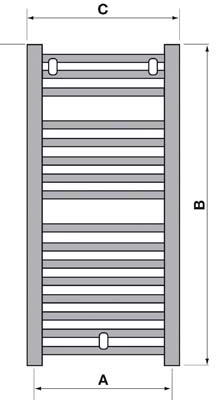

A = centre-to-centre connections
B = Height
C = Length

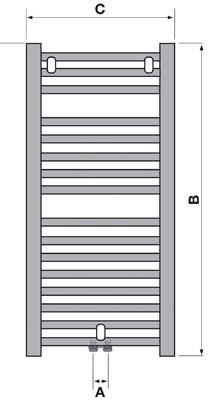

Mid Connection



Corrective ratios

°C Factor °F
40°C 0.75 72°F
45°C 0.88 81°F
50°C 1 90°F
55°C 1.13 99°F
60°C 1.25 108°F
65°C 1.39 117°F
70°C 1.51 126°F

V-KNOB

per pair

white, PATVRBL, 10,92 £
chrome, PATVRCH, 10,92 £



TOWEL RING



white, ANORBL, 28,57 £
chrome, ANORCH, 28,57 £





ROUND KNOBS

per pair

white, PATRBL, 10,92 £
chrome, PATRCH, 10,92 £





GRILL

Length radiator
min. 600 mm

white, GRILLBL, 59,66 £
chroom, GRILLCH, 59,66 £





TOWEL RAIL
right 370 mm

length radiator
min. 500 mm

white, BARR40BL, 22,69 £
chrome, BARR40CH, 22,69 £



TOWEL RAIL
right 470 mm

length radiator
min. 600 mm

white, BARR50BL, 26,05 £
chrome, BARR50CH, 26,05 £





Each PURMO is guaranteed for ten years from the date of installation against defects caused by faulty materials or manufacture. We replace the defective product with a similar or technically corresponding convector.

The guarantee does not cover damages that are due to faulty storage and handling at delivery or installation, nor damages that are due to faulty use of the convector, such as inside and outside rust, use of corrosive substances, too high pressure or damage due to freezing.

This guarantee does not cover incidental damages caused by the Purmo product, costs for change of product, production loss of the customer, loss of profit or other indirect costs.

In case of a guarantee claim the buyer must contact the seller and present some kind of evidence of purchase of the product, for example, order confirmation or delivery note.

The defective product always has to be sent back to Purmo for inspection within one month from the date of complaint, if not otherwise agreed upon.
