Figuresse Design Bathroom Range

Rasp

Figuresse Design Bathroom Range - Rasp

+

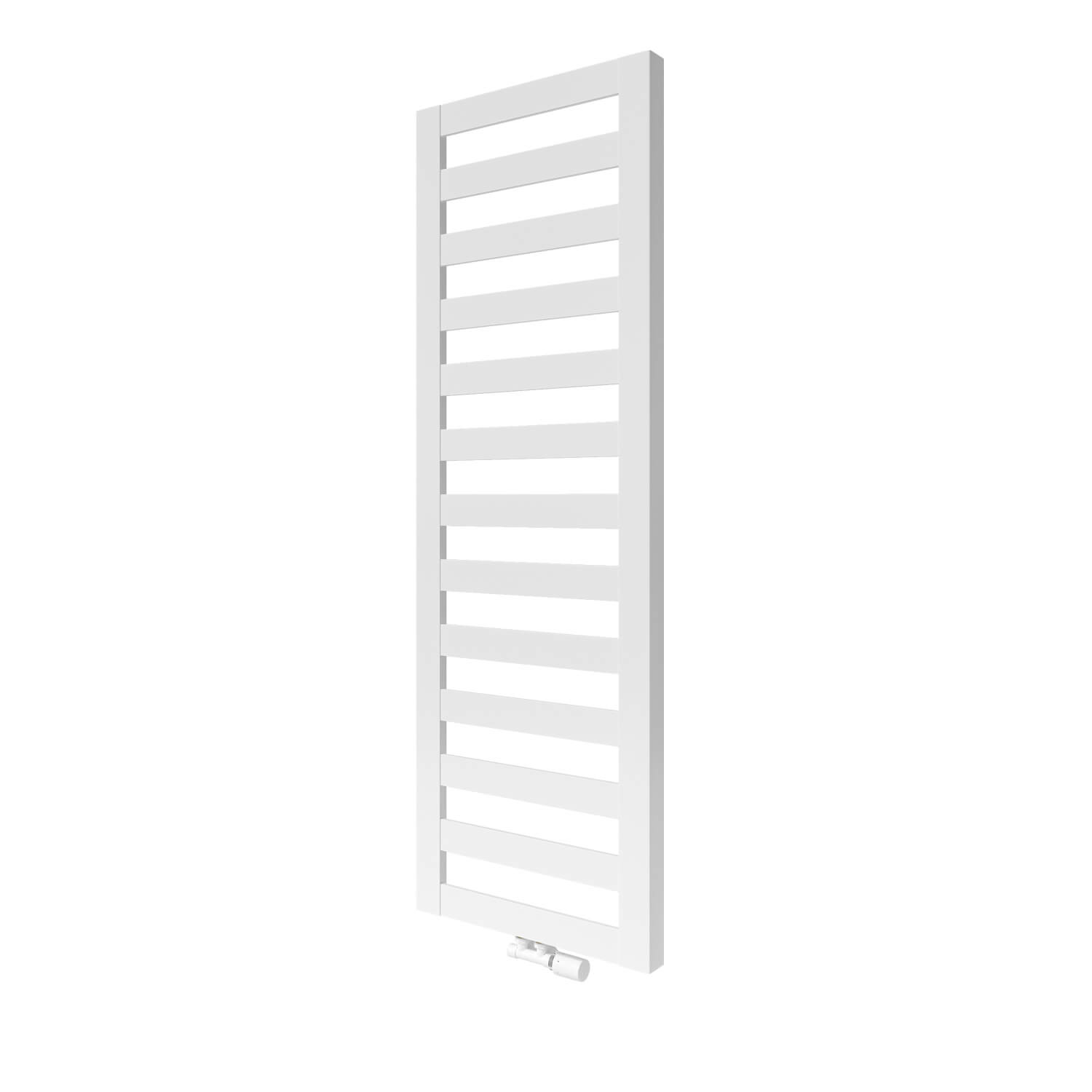

Rasp

With its flat shape and very thin structure, this bathroom design radiator blends in perfectly and instantly raises the room’s interior design to a new level.

The 90° angled  slim rectangles provide enough space for drying towels.

FEATURES

  • Provides plenty of space for drying towels
  • Simple and user-friendly control
  • Classic centre connection for easy installation
  • Available in hydronic, electric and dual fuel versions

HYDRONIC VERSIONS


Gloss White
(RAL 9016)

Matt Jet Black
(RAL 9005)

Matt Anthracite Grey
(RAL 7016)



ELECTRIC VERSIONS


Gloss White
(RAL 9016)



ACCESSORIES:

  • FCIR Remote (Optional extra with Duel-Fuel functionality)
  • FCIR Heating element(required for Dual-Fuel capability) 400/600/800W (available in Chrome, White, Jet Black and Anthracite Grey)
  • Angle and/or Straight Valve Body with Design cover (Available in White, Chrome and Matt Stainless steel)
  • Valve Set VHX-D/RAX angle (Available in White and Chrome)
  • Angled and/or Straight Valve Body inlc. TH Head (available in Chrome, White, Jet Black and Anthracite Grey)

Electric products are fitted with a European style plug & power cable. Refer to the instruction manual and consult with an installer to ensure product can be correctly installed prior to purchasing.

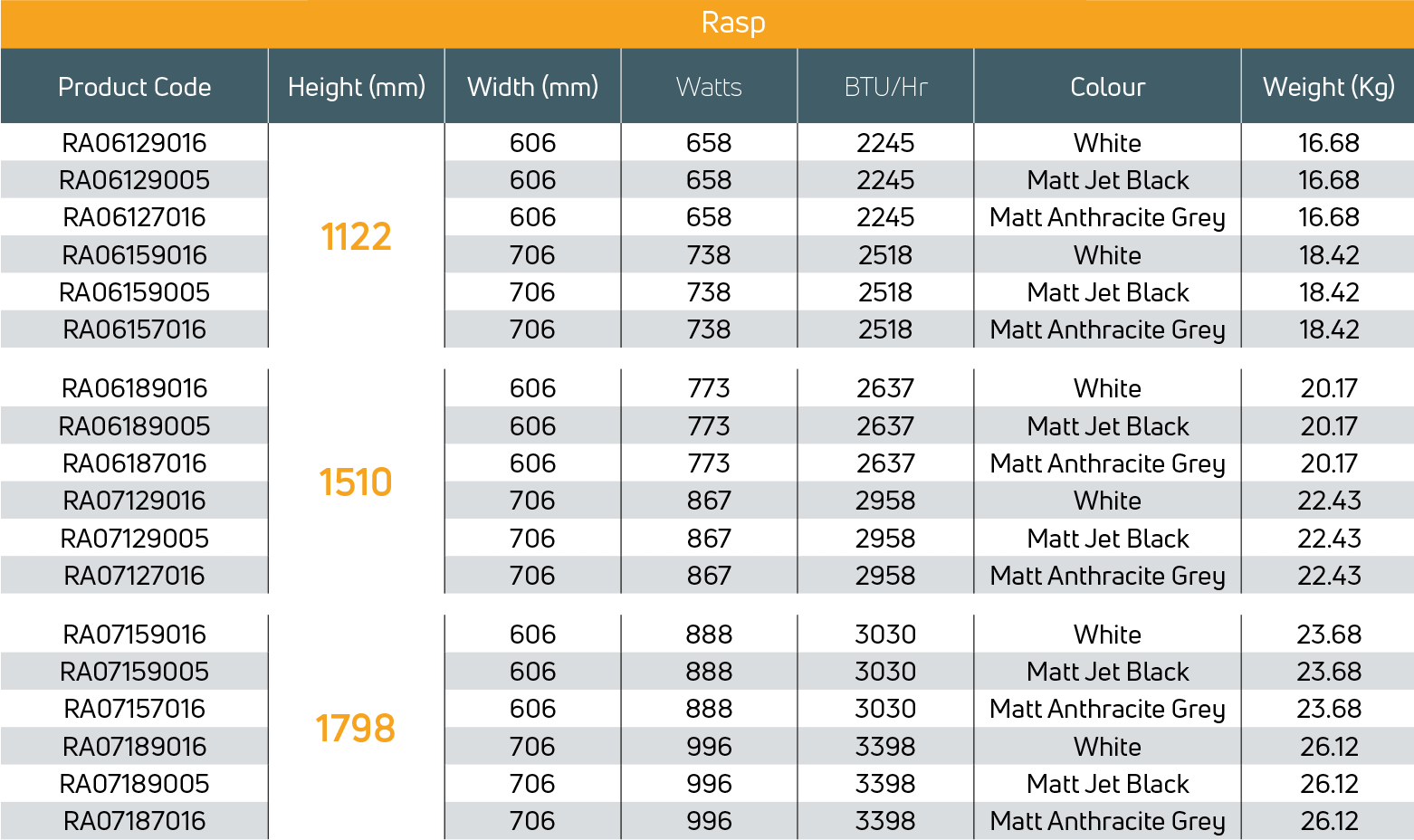

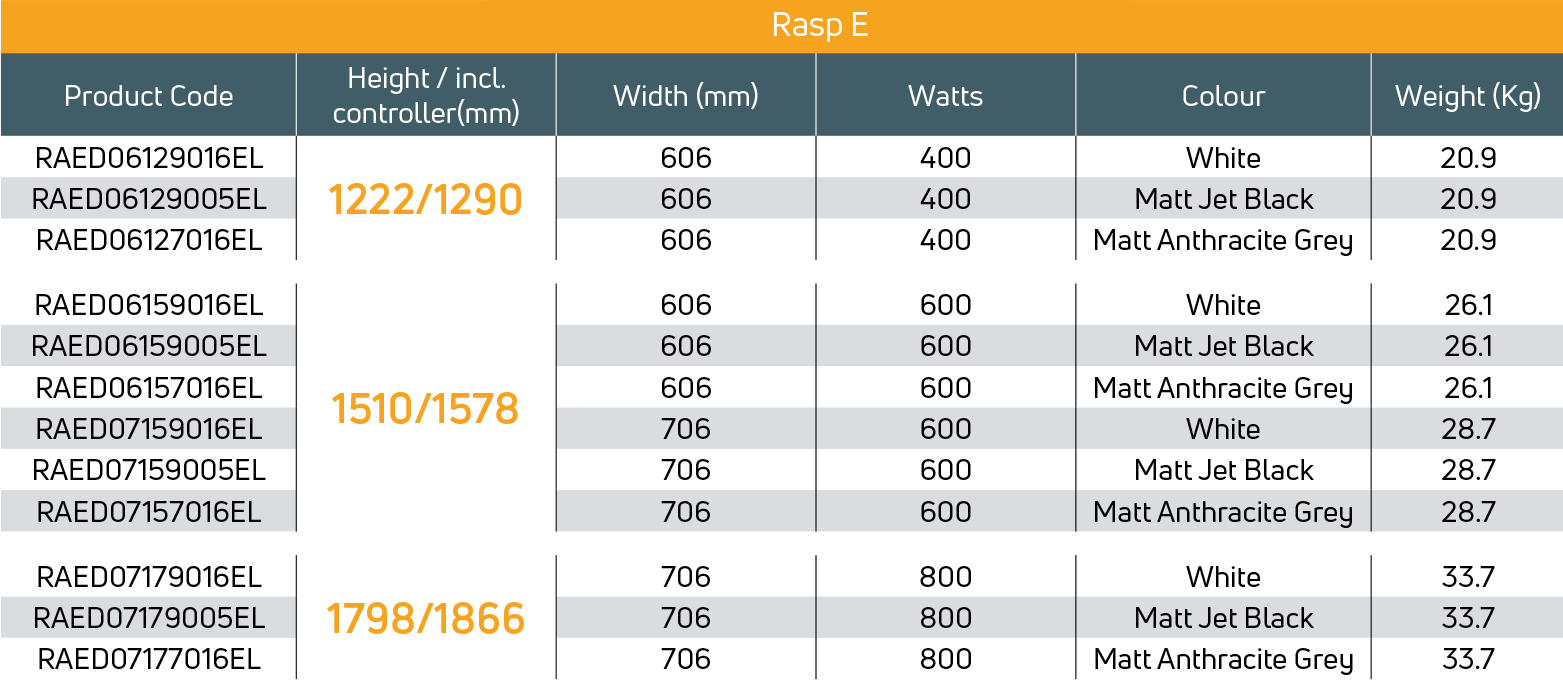

Heat outputs and dimensions

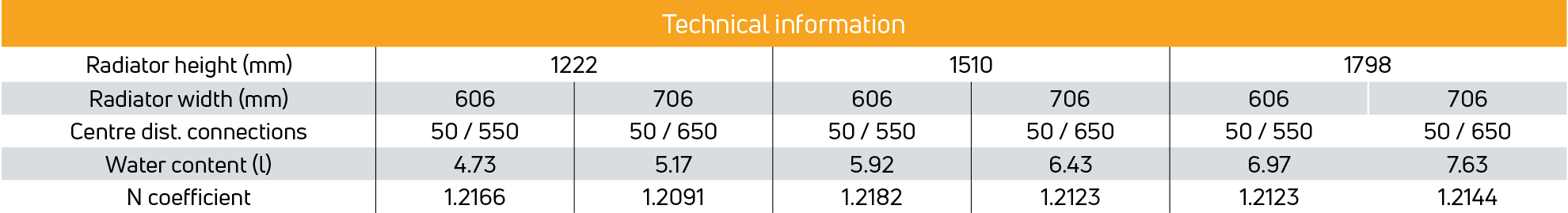

Technical information

Technical drawings

Rasp

Rasp E

A (mm) B (mm)
606 1222
706 1222
606 1510
706 1510
606 1798
706 1798

Stock Profile Brochure - July 2022

Stock Profile Brochure - July 2022
Version imprimable
PDF: 13.98 MB

All Figuresse Radiators have a 5 year warranty Period and 2 year Warranty Period on Electric Components.

Accessories to be confirmed.
