Figuresse Design Bathroom Range

Impulse

Figuresse Design Bathroom Range - Impulse

+

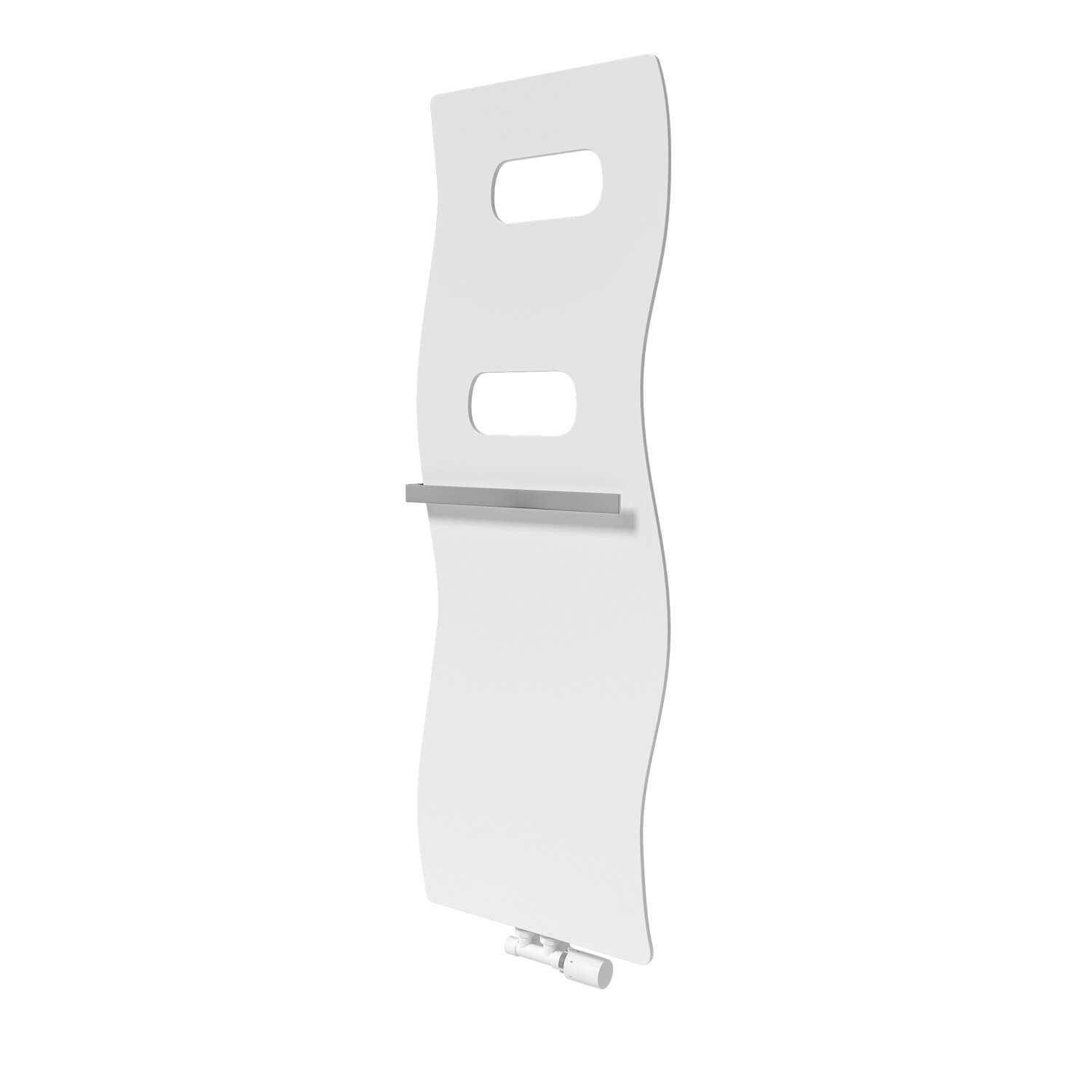

IMPULSE

This towel warmer moves away from the traditional design and, with its wavy shape, creates a new impulse that adds liveliness to any bathroom interior.

The radiator is delivered with a practical towel holder.

FEATURES

  • Extremely flat construction and wave shape turn the radiator into a design element
  • Thanks to the smooth surface, the Impulse is particularly easy to clean
  • Simple and user-friendly control
  • Classic centre connection for easy installation

HYDRONIC VERSIONS


Gloss White
(RAL 9016)

Matt Jet Black
(RAL 9005)

Matt Anthracite Grey
(RAL 7016)



ELECTRIC VERSIONS


Gloss White
(RAL 9016)



ACCESSORIES:

  • Angle and/or Straight Valve Body with Design cover (Available in White, Chrome and Matt Stainless steel)
  • Valve Set VHX-D/RAX angle (Available in White and Chrome)
  • Angled and/or Straight Valve Body inlc. TH Head (available in Chrome, White, Jet Black and Anthracite Grey)
  • Towel Bar 400/450/500mm

Electric products are fitted with a European style plug & power cable. Refer to the instruction manual and consult with an installer to ensure product can be correctly installed prior to purchasing.

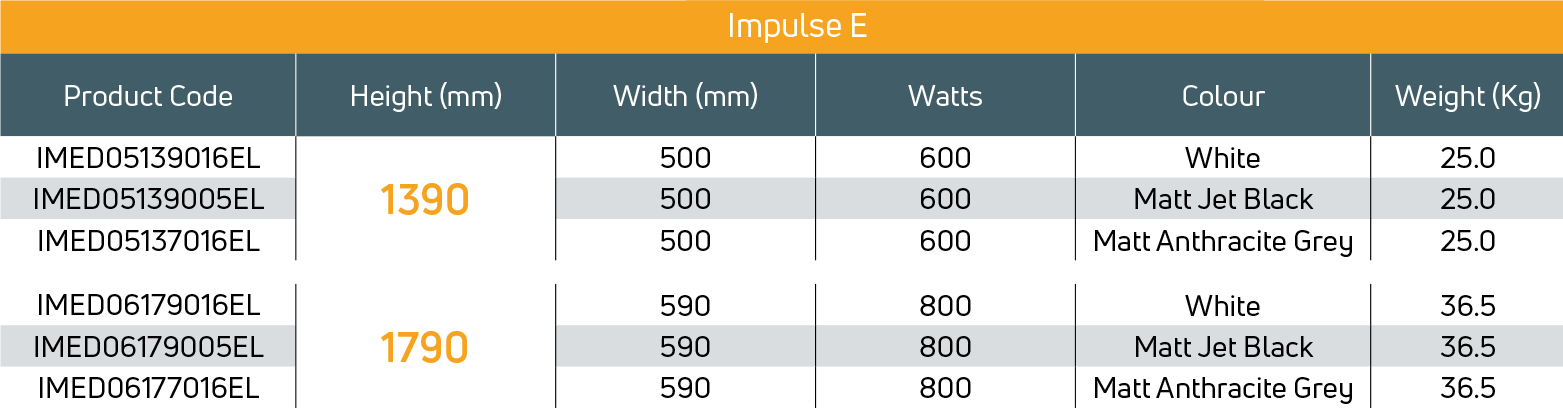

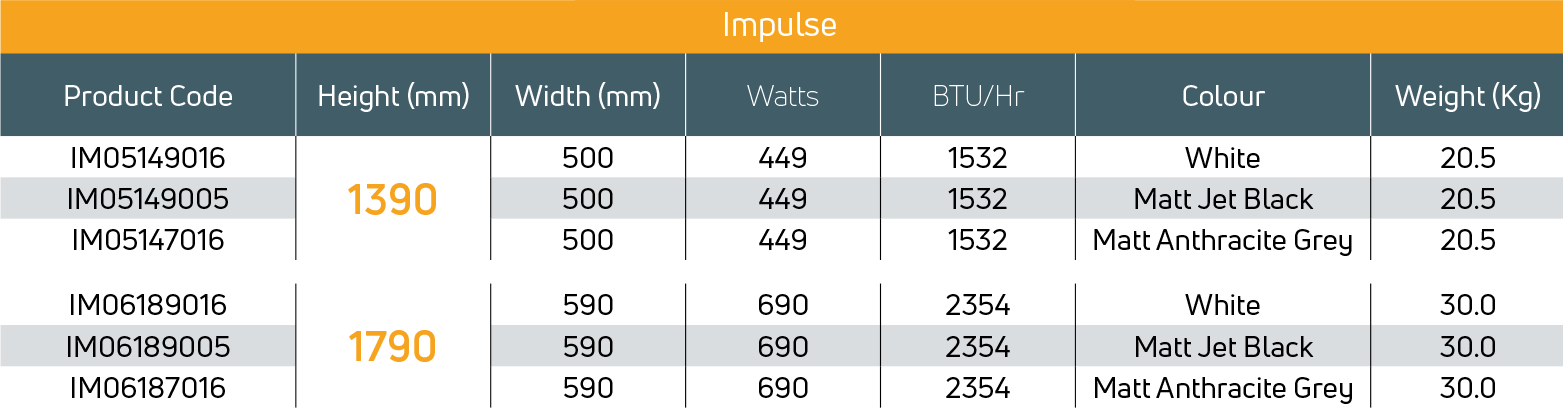

Heat outputs and dimensions

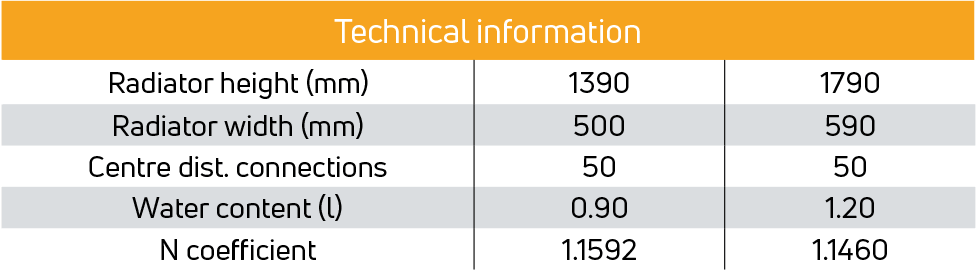

Technical information

Technical drawings

Impulse

Impulse E

A (mm) a1 a2 a3 a4 B (mm) b1 b2 b3 b4 b5
390 175 122.5 145 175 1390 450 490 87.5 215 695
490 200 125 240 270 1790 515 760 100 275 895

Stock Profile Brochure - July 2022

Stock Profile Brochure - July 2022
Version imprimable
PDF: 13.98 MB

All Figuresse Radiators have a 5 year warranty Period and 2 year Warranty Period on Electric Components.

Accessories to be confirmed.
