Underfloor Heating - Underfloor Heating range

Comfort Delivered
Heat rises from the floor to provide optimum comfort conditions

Effective Heating
The majority of the output is radiant, which is very effective even at slightly lower temperatures

System Efficiency
A reduction in air movement results in efficiently heating the space we live in rather than having high temperatures above head height

Temperature Control
Greater temperature accuracy can be achieved due to having individual thermostats controlling each room

Design Freedom
Underfloor heating turns the floor area into a heat emitter therefore giving complete design freedom of wall space

24 Hour Quotation Service
Forward floor plans to [email protected] to receive a free of charge quotation within 24 hours

Design Experience
With a combined experience of 100 years our design team are ready to complete a free of charge design upon receipt of your Underfloor Heating project

Fixing Systems

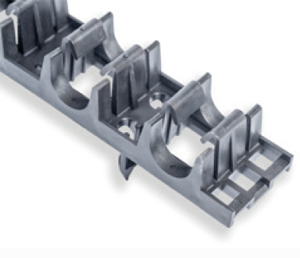

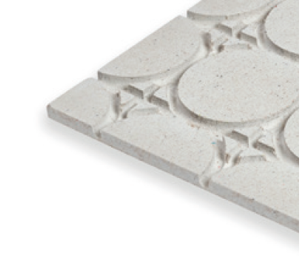

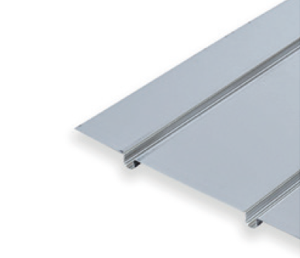

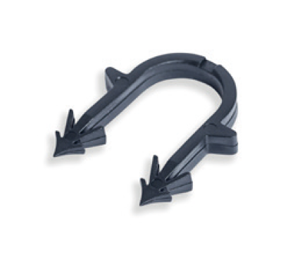

Applications	CLIPS	CLIPRAIL	LOW PROFILE	PLATED	CEMENT BOARD
Solid Floor	x	x	x		x
Suspended Floor			x	x	x
Renovations			x	x	x





Specifications	CLIPS	CLIPRAIL	LOW PROFILE	PLATED	OVERLAY
F&Bs	Cost effective fixing method	Perfect for large open areas	Versatile and thin depth	Highly conductive system for joisted floor applications	Minimal floor lift
	Quick & easy to install	Built in barbs reduce install time	Fast reacting system		Fast response dry system
Pipe	16 mm	16 mm	12 mm	16 mm	16 mm
Spacings	150/200/250 mm	150/200 mm	100/150 mm	150/200 mm	150 mm
Pattern	Spiral or Serpentine	Serpentine	Spiral or Serpentine	Serpentine	Serpentine

Pipe

DIAMETER	PIPE TYPE	COIL SIZES	WALL THICKNESS
12 mm	Pert	100 m, 240 m	2 mm
16 mm	Pert	100 m, 240 m, 500 m	2 mm

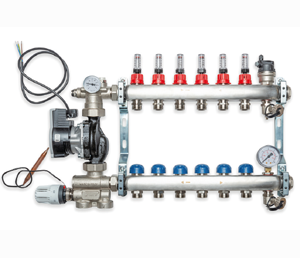

Manifold & Manifold Control Centre

Features & Benefits
Pre-assembled stainless steel manifold
Range includes 2-12 ports
Easy to use flow meters with locking facility for easy removal and cleaning
Supplied with automatic air vent & pressure gauge

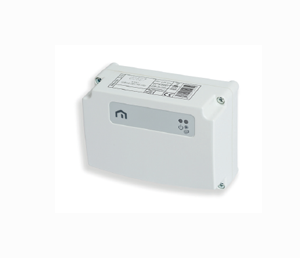

 Wiring Centre

Features & Benefits
4 & 8 way channel wiring centres available
LED status indicators

Controls

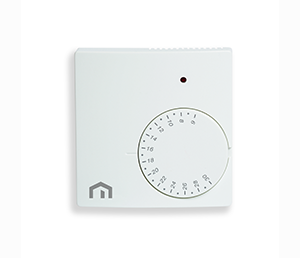

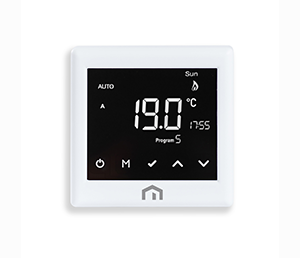

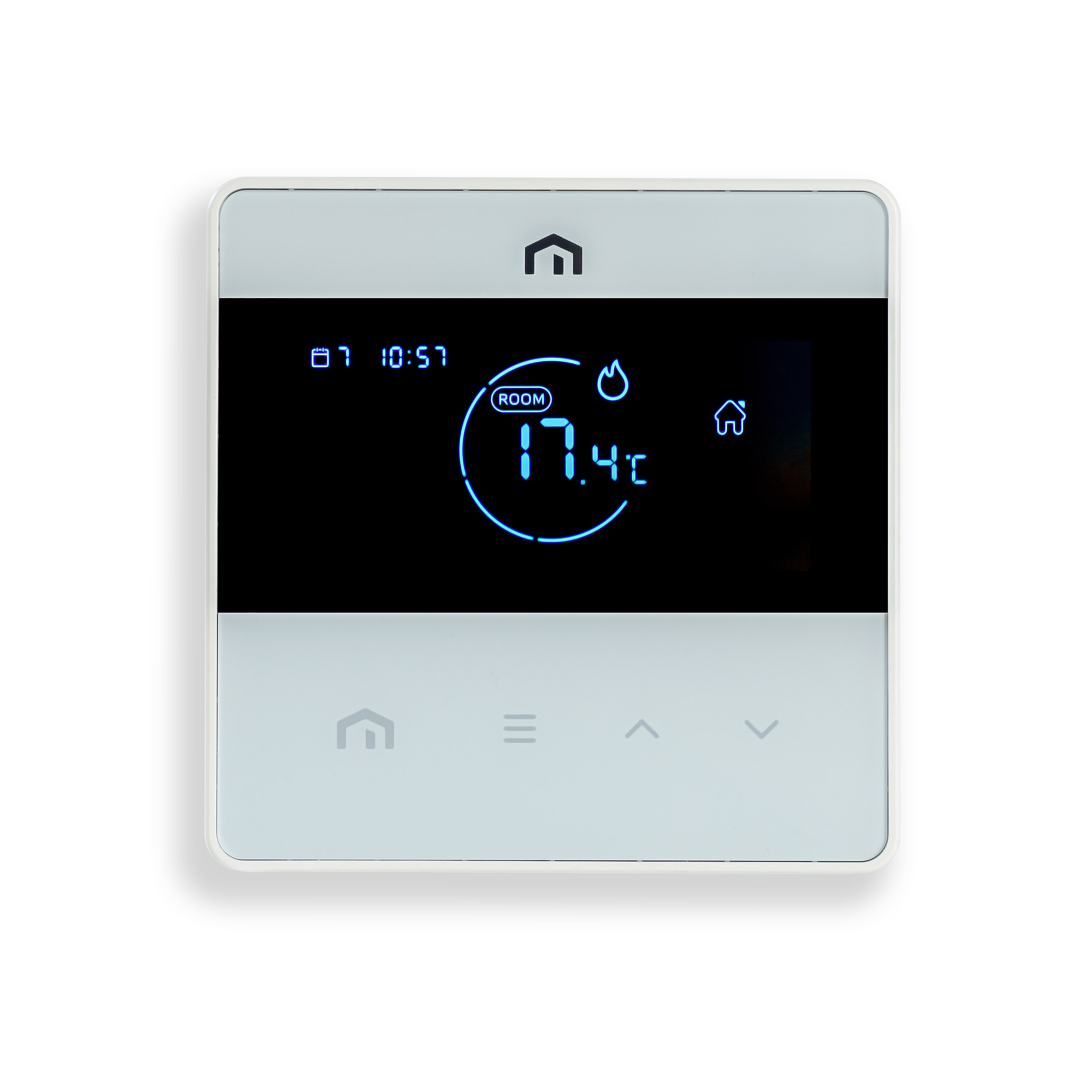

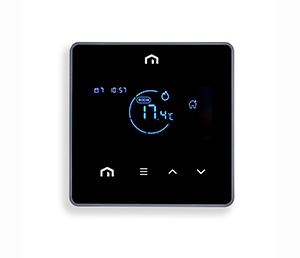

DIAL THERMOSTAT	DIGITAL TIMER	DIGITAL THERMOSTAT	CLEVER THERMOSTAT *
Easy to use thermostat	Used with the Dial Thermostat for timed control	Touch screen	Touch sensitive controls
LED demand indicator	Back-lit display	Programmable thermostat	WiFi Enabled with no requirement for a hub
Surface mounted	6 program settings	7 day, 5/2, or 24 modes	Purmo branded App compatible with Google play, IOS, Android & Amazon platforms
Night set back operation	Suitable with standard 35 mm single gang back box	Optimum Start	Geo-location feature
2 -year warranty	2 -year warranty	Frost protection	Programmable thermostat
230V	230V	Display can be constant or auto reduce	7 day, 5/2, or 24 modes
		Remote air / floor sensor options	Optimum Start
		2 -year warranty	Frost protection
		230V	Display can be constant or auto reduced
			Remote air / floor sensor options
			Available in black or white colour
			2 -year warranty
			230V
