Figuresse Design Bathroom Range

Ellipse

Figuresse Design Bathroom Range - Ellipse

+

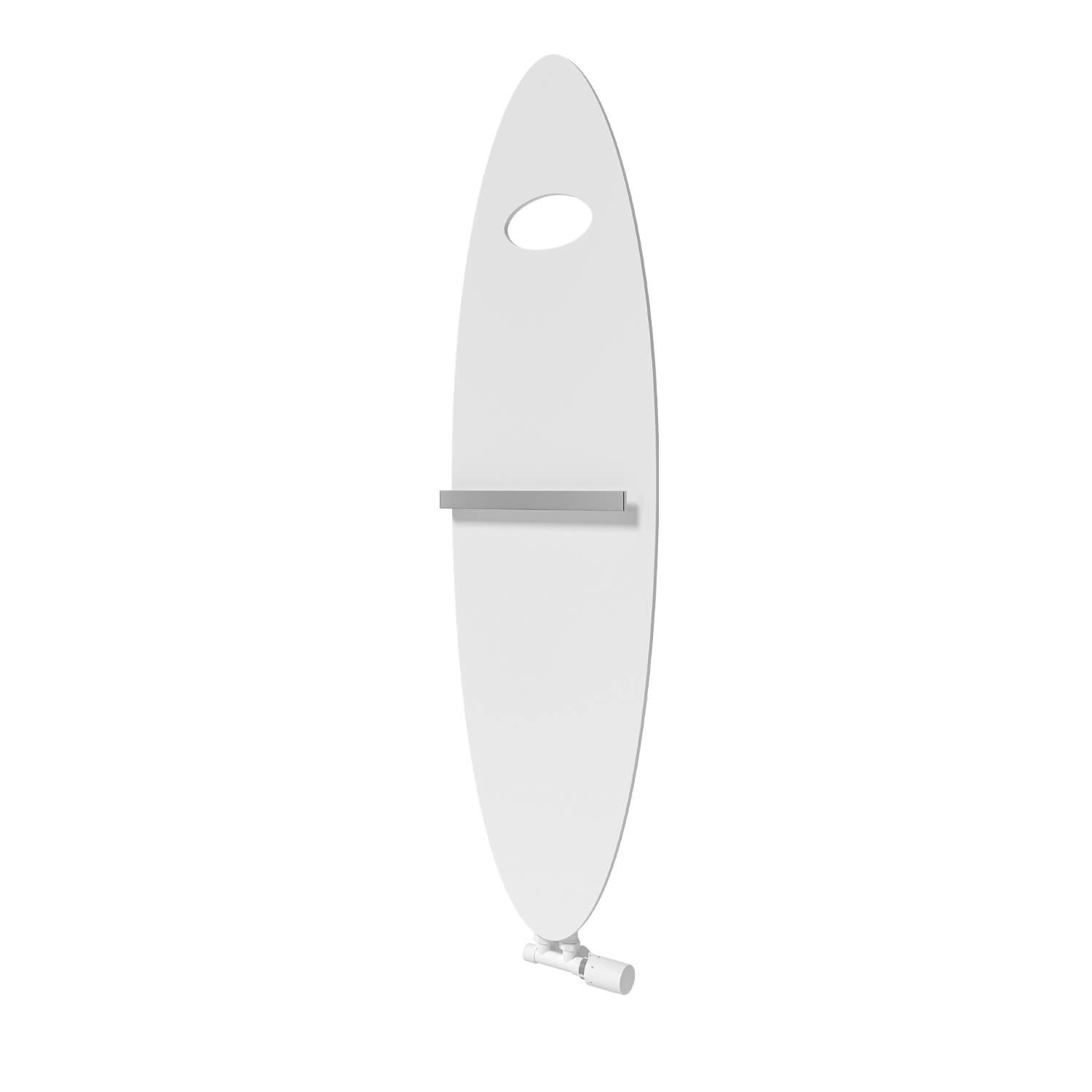

ELLIPSE

With its exceptional shape, the Ellipse is a true eye-catcher in any interior. This elliptical design bathroom radiator steps away from all standard contour lines and traditional profiles, and takes us to a completely new dimension in bathroom design.

The radiator is delivered with a practical towel holder.

FEATURES

  • Extremely flat design and oval shape bring variety to the room
  • Thanks to the smooth surface, the Ellipse is particularly easy to clean
  • Available with one or two towel rails
  • Simple and user-friendly control
  • Classic centre connection for easy installation

HYDRONIC VERSIONS


Gloss White
(RAL 9016)

Matt Jet Black
(RAL 9005)

Matt Anthracite Grey
(RAL 7016)



ELECTRIC VERSIONS


Gloss White
(RAL 9016)



ACCESSORIES:

  • FCIR Remote (required for Dual-Fuel capability)
  • Angle and/or Straight Valve Body with Design cover (Available in White, Chrome and Matt Stainless steel)
  • Valve Set VHX-D/RAX angle (Available in White and Chrome)
  • Angled and/or Straight Valve Body inlc. TH Head (available in Chrome, White, Jet Black and Anthracite Grey)
  • Towel Bar 400/450/500mm

Electric products are fitted with a European style plug & power cable. Refer to the instruction manual and consult with an installer to ensure product can be correctly installed prior to purchasing.

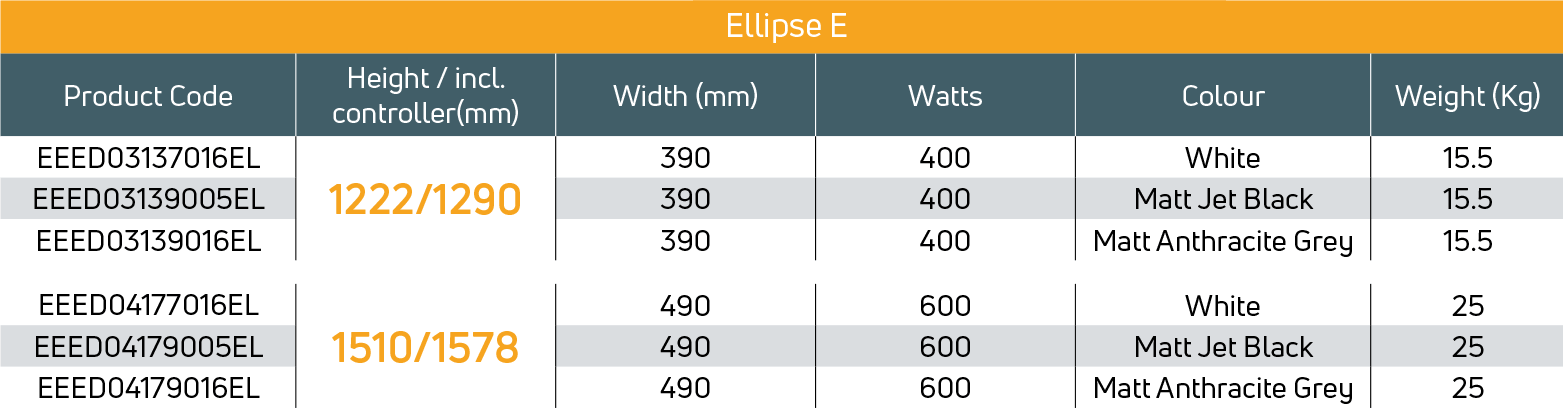

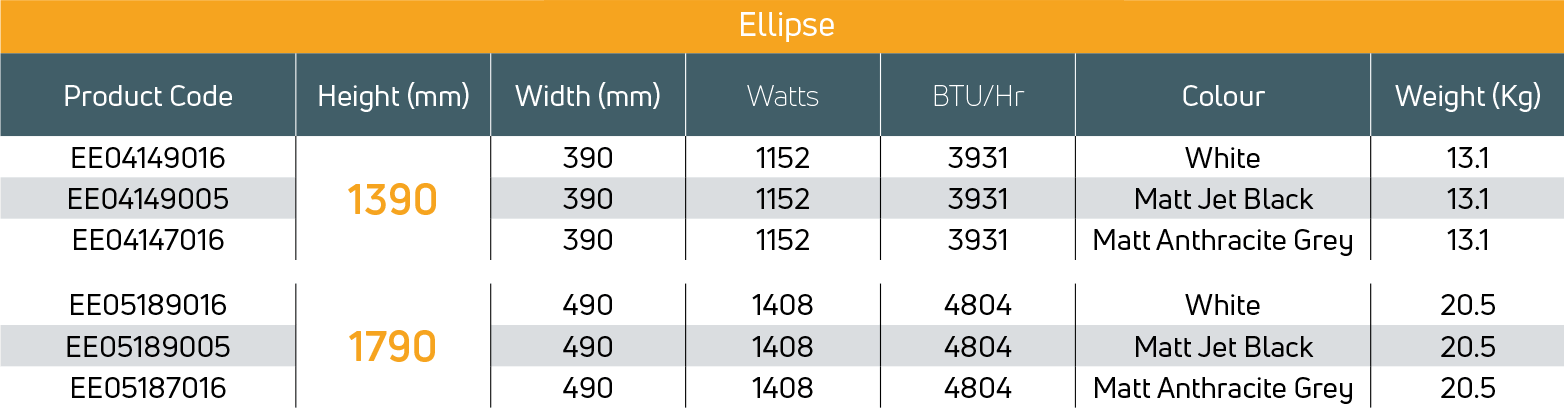

Heat outputs and dimensions

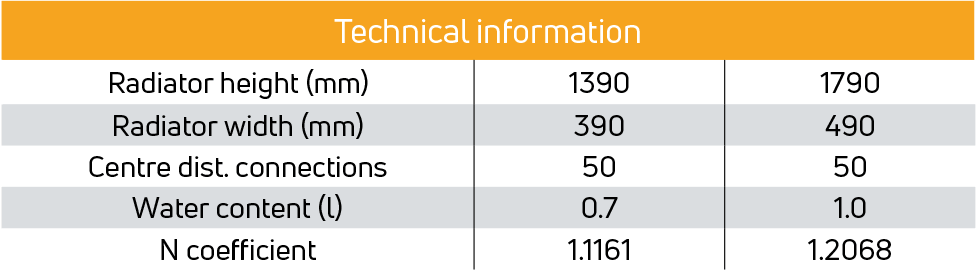

Technical information

Technical drawings

Ellipse

Ellipse E

A (mm) a1 a2 a3 a4 B (mm) b1 b2 b3 b4 b5
390 175 122.5 145 175 1390 450 490 87.5 215 695
490 200 125 240 270 1790 515 760 100 275 895

Stock Profile Brochure - June 2022

Stock Profile Brochure - June 2022
Version imprimable
PDF: 14.85 MB

All Figuresse Radiators have a 5 year warranty Period and 2 year Warranty Period on Electric Components.

Accessories to be confirmed.
