Material: | high quality, deep-drawing, low-carbon, cold rolled DC01 steel sheet in accordance with PN-EN 10130. |
Spacing of vertical water channels: | 33,3 mm |
Connections: | 2 x G ½" bottom, right side connectors (left side- available on request) 4 x G ½" side connectors |
Working pressure: | 10 bar |
Maximal temperature: | 110°C |
Test pressure: | 13 bar |
Colour: | RAL 9016 white, other colours from the RAL colour chart are available on request. |
Accessories bundled with the radiator: | plugs, air vent |
Type 10 |
Type 20 |
Type 30 |
H - height: 300, 450, 500, 600, 900
L - length: 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1400, 1600,1800, 2000, 2300, 2600, 3000
h - spacing of connectors
PURMO H | 10 | 20 | 30 |
---|---|---|---|
radiator depth | 47 | 102 | 152 |
A - mounting depth | 100 | 100 | 100 |
B - total depth | 114 | 202 | 252 |
C - connection axis* | 84 | 151 | 151* |
* 201 mm in case of the HV 30 type radiator after conversion to the left side
Thermal output of the radiators [W] in accordance with PN-EN 442 for the values of parameters 75/65/20 ˚C and 70/55/20˚C.
height [mm] | 300 | 450 | 500 | |||||||
---|---|---|---|---|---|---|---|---|---|---|
length
[mm] |
type | HV | HV | HV | ||||||
temp. | 10 | 20 | 30 | 10 | 20 | 30 | 10 | 20 | 30 | |
exponent n | 1.3425 | 1.2815 | 1.2957 | 1.3171 | 1.2846 | 1.3028 | 1.3086 | 1.2856 | 1.3051 | |
400 | 75/65°C | 139 | 252 | 350 | 199 | 345 | 482 | 218 | 375 | 524 |
70/55°C | 111 | 203 | 281 | 159 | 278 | 386 | 175 | 302 | 420 | |
500 | 75/65°C | 174 | 315 | 437 | 249 | 432 | 549 | 273 | 469 | 655 |
70/55°C | 139 | 253 | 351 | 199 | 347 | 483 | 219 | 377 | 524 | |
600 | 75/65°C | 209 | 378 | 524 | 299 | 518 | 723 | 328 | 563 | 785 |
70/55°C | 166 | 304 | 421 | 239 | 416 | 580 | 262 | 452 | 629 | |
700 | 75/65°C | 244 | 441 | 612 | 349 | 604 | 844 | 382 | 657 | 916 |
70/55°C | 194 | 355 | 491 | 251 | 486 | 676 | 306 | 528 | 734 | |
800 | 75/65°C | 278 | 504 | 699 | 398 | 690 | 964 | 437 | 750 | 1047 |
70/55°C | 222 | 405 | 561 | 319 | 555 | 773 | 350 | 603 | 839 | |
900 | 75/65°C | 313 | 567 | 787 | 448 | 777 | 1085 | 491 | 844 | 1178 |
70/55°C | 249 | 456 | 631 | 358 | 625 | 869 | 394 | 679 | 944 | |
1000 | 75/65°C | 348 | 630 | 874 | 498 | 863 | 1205 | 546 | 938 | 1309 |
70/55°C | 277 | 507 | 701 | 398 | 694 | 966 | 437 | 754 | 1049 | |
1100 | 75/65°C | 383 | 693 | 961 | 548 | 949 | 1326 | 601 | 1032 | 1440 |
70/55°C | 305 | 558 | 772 | 438 | 763 | 1063 | 481 | 830 | 1154 | |
1200 | 75/65°C | 418 | 756 | 1049 | 598 | 1036 | 1446 | 655 | 1126 | 1571 |
70/55°C | 333 | 608 | 842 | 478 | 833 | 1159 | 525 | 905 | 1259 | |
1400 | 75/65°C | 487 | 882 | 1224 | 697 | 1208 | 1687 | 764 | 1313 | 1833 |
70/55°C | 388 | 710 | 982 | 558 | 972 | 1352 | 612 | 1056 | 1469 | |
1600 | 75/65°C | 557 | 1008 | 1398 | 797 | 1381 | 1928 | 874 | 1501 | 2094 |
70/55°C | 443 | 811 | 1122 | 637 | 1110 | 1546 | 700 | 1207 | 1678 | |
1800 | 75/65°C | 626 | 1134 | 1573 | 896 | 1553 | 2169 | 983 | 1688 | 2356 |
70/55°C | 499 | 912 | 1263 | 717 | 1249 | 1739 | 787 | 1357 | 1888 | |
2000 | 75/65°C | 696 | 1260 | 1748 | 996 | 1726 | 2410 | 1092 | 1876 | 2618 |
70/55°C | 554 | 1014 | 1403 | 797 | 1388 | 1932 | 875 | 1508 | 2098 | |
2300 | 75/65°C | 800 | 1449 | 2010 | 1145 | 1985 | 2772 | 1256 | 2157 | 3011 |
70/55°C | 637 | 1166 | 1613 | 916 | 1596 | 2222 | 1006 | 1735 | 2413 | |
2600 | 75/65°C | 905 | 1638 | 2272 | 1295 | 2244 | 3133 | 1420 | 2439 | 3403 |
70/55°C | 720 | 1318 | 1824 | 1035 | 1804 | 2512 | 1137 | 1961 | 2727 | |
3000 | 75/65°C | 1044 | 1890 | 2622 | 1494 | 2589 | 3615 | 1638 | 2814 | 3927 |
70/55°C | 831 | 1521 | 2104 | 1195 | 2082 | 2898 | 1312 | 2262 | 3147 |
height [mm] | 600 | 900 | |||||
---|---|---|---|---|---|---|---|
length
[mm] |
type | HV | HV | ||||
temp. | 10 | 20 | 30 | 10 | 20 | 30 | |
exponent n | 1.2916 | 1.2876 | 1.3098 | 1.2988 | 1.3042 | 1.3418 | |
400 | 75/65°C | 256 | 434 | 604 | 361 | 606 | 828 |
70/55°C | 205 | 349 | 484 | 290 | 486 | 659 | |
500 | 75/65°C | 320 | 543 | 755 | 452 | 758 | 1035 |
70/55°C | 257 | 436 | 605 | 362 | 608 | 824 | |
600 | 75/65°C | 383 | 651 | 906 | 542 | 910 | 1241 |
70/55°C | 308 | 523 | 725 | 435 | 729 | 989 | |
700 | 75/65°C | 447 | 760 | 1057 | 632 | 1061 | 1448 |
70/55°C | 359 | 610 | 846 | 507 | 851 | 1153 | |
800 | 75/65°C | 511 | 868 | 1208 | 722 | 1213 | 1655 |
70/55°C | 411 | 698 | 967 | 580 | 972 | 1318 | |
900 | 75/65°C | 575 | 977 | 1359 | 813 | 1364 | 1862 |
70/55°C | 462 | 785 | 1088 | 652 | 1094 | 1483 | |
1000 | 75/65°C | 639 | 1085 | 1510 | 903 | 1516 | 2069 |
70/55°C | 513 | 872 | 1209 | 724 | 1215 | 1648 | |
1100 | 75/65°C | 703 | 1194 | 1661 | 993 | 1668 | 2276 |
70/55°C | 565 | 959 | 1330 | 797 | 1337 | 1812 | |
1200 | 75/65°C | 767 | 1302 | 1812 | 1084 | 1819 | 2483 |
70/55°C | 616 | 1046 | 1451 | 869 | 1458 | 1977 | |
1400 | 75/65°C | 895 | 1519 | 2114 | 1264 | 2122 | 2897 |
70/55°C | 719 | 1221 | 1693 | 1014 | 1701 | 2307 | |
1600 | 75/65°C | 1022 | 1736 | 2416 | 1445 | 2426 | 3310 |
70/55°C | 821 | 1395 | 1934 | 1159 | 1944 | 2636 | |
1800 | 75/65°C | 1150 | 1953 | 2718 | 1625 | 2729 | 3724 |
70/55°C | 924 | 1570 | 2176 | 1304 | 2187 | 2966 | |
2000 | 75/65°C | 1278 | 2170 | 3020 | 1806 | 3032 | 4138 |
70/55°C | 1026 | 1744 | 2418 | 1449 | 2430 | 3295 | |
2300 | 75/65°C | 1470 | 2496 | 3473 | 2077 | 3487 | 4759 |
70/55°C | 1180 | 2006 | 2781 | 1666 | 2795 | 3790 | |
2600 | 75/65°C | 1661 | 2821 | 3926 | 2348 | 3942 | 5379 |
70/55°C | 1334 | 2267 | 3144 | 1883 | 3159 | 4284 | |
3000 | 75/65°C | 1917 | 3255 | 4530 | 2709 | 4548 | 6207 |
70/55°C | 1540 | 2616 | 3627 | 2173 | 3645 | 4943 |
height [mm]: | 300 | 450 | 500 | 600 | 900 | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10 | 20 | 30 | 10 | 20 | 30 | 10 | 20 | 30 | 10 | 20 | 30 | 10 | 20 | 30 | |
weight [kg/m]: | 5,9 | 11,8 | 17,6 | 8,8 | 17,6 | 26,3 | 9,8 | 19,5 | 29,2 | 11,7 | 23,4 | 35,0 | 17,2 | 34,1 | 51,0 |
water volume [l/m]: | 1,7 | 3,4 | 5,1 | 2,5 | 5,0 | 7,5 | 2,7 | 5,5 | 8,2 | 3,2 | 6,6 | 9,8 | 4,5 | 9,0 | 13,3 |
Starting from January 2011 all the bottom-supplied PURMO panel radiators are equipped with new valve Oventrop inserts with factory preset setpoint ranging from 2 to 6 depending on the size (heat output) of the particular radiator. In order to provide an easy, visual distinction of the applied valve insert, colour coding of regulatory elements of the valve inserts was implemented.
preset setpoint | kv [m3/h] | colour | catalogue no. |
2 | 0,13 | white | 1651162 |
3 | 0,27 | black | 1651163 |
4 | 0,42 | green | 1651164 |
5 | 0,56 | blue | 1651165 |
6 | 0,70 | red | 1651166 |
The hydraulic characteristics of these new valve inserts are very similar to the old type (catalogue no. 101 80 80).
Should a need arise, the setpoint of every new valve insert can be changed, just like in the case of the old type inserts.
Total length of the new valve inserts was modifi ed due to an improved sealing, therefore they cannot be used in the radiators manufactured prior to January 2011 and equipped with the old-type of valve inserts.
Old-type and new-type insert |
Series of new-type inserts |
Example of preset setpoint selection
Given:
heat demand - Qc = 1160 W
rótemperature diff erence - Δt = 20 K (80/60°C)
pressure drop - Δp = 6 kPa
Δp = 6000 Pa
calculation constant - C = 1,163
calculations::
mass flow of water
q = Qc / C * Δt = 1160 / 1,163 * 20 = 50 kg/h
For the flow q = 50 kg/h and the pressure flow 6000 Pa the preset setpoint value 3 is red off the nomogram.
Mass flow of water q [kg/h] |
Bottom connection:This connection method is used with the bottom-supplied radiators. The supply and return line axes are always located, respectively, 80 mm and 30 mm from the side edge of the radiator. Reversed connection will cause a drop in the heat output of over 30%. |

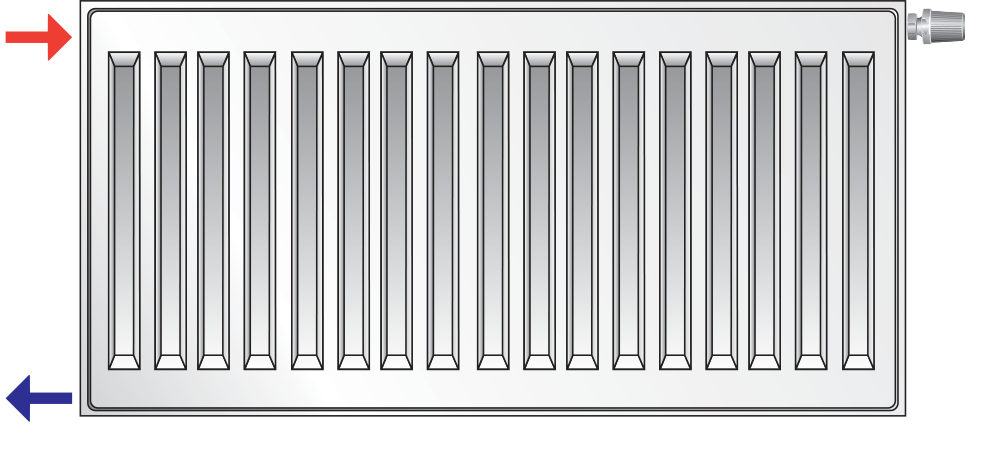

Side connection:The most popular solution allowing for connecting radiators on either the right or the left side. The supply line should be connected to the top and the return line to the bottom connector pipe of the radiator. Reversed connection will cause a drop in the heat output of over 30%. |

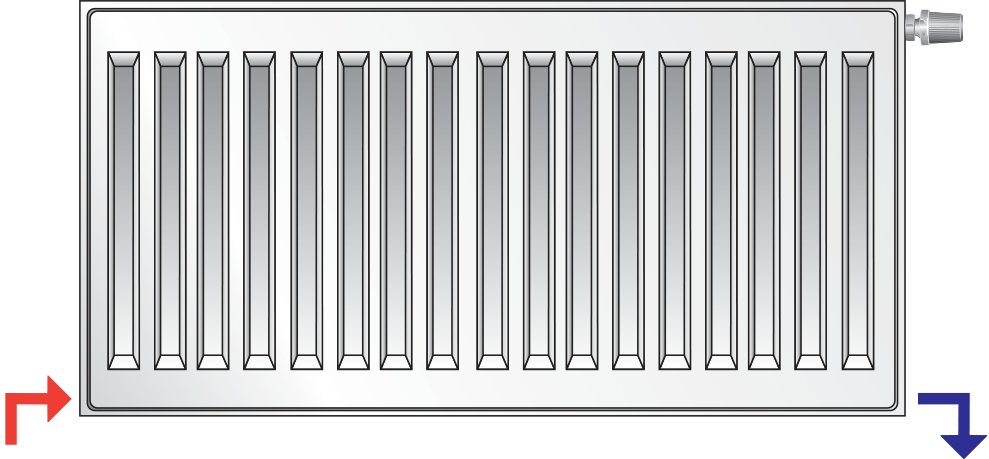

Flow-through connection:Recommended for the radiators of length exceeding 2000 mm and also for the radiators of length exceeding four times their height. These connections provide even distribution of temperature over the entire length of the radiator. The supply line should be connected to the left or right connector pipe and the return line should be connected to the opposite, bottom connector pipe. Reversed connection will cause a drop in the heat output of over 30%. |

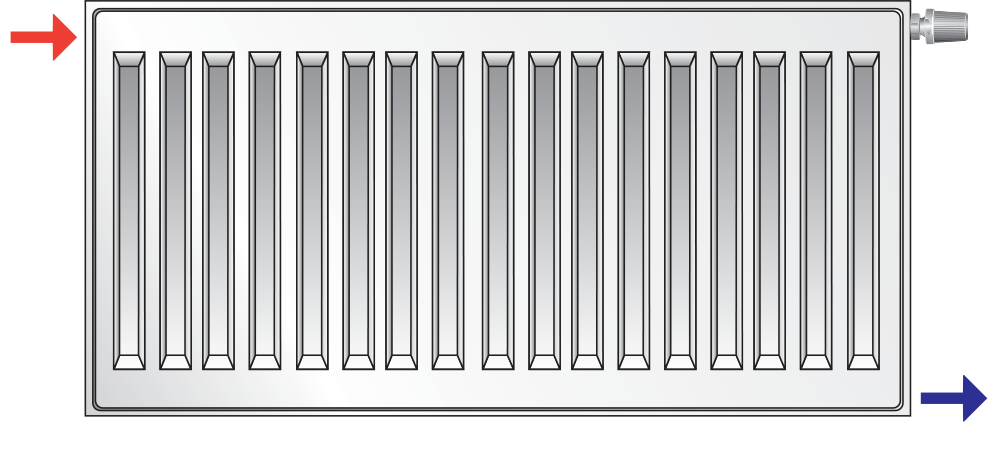

Opposite ends connectione:With this connection method, the heat output of the radiators will be approximately 10% lower than the rated heat output. This type of connection method is most commonly used with the side-supplied radiators when the heating system piping is distributed in skirting boards above the fl oor. It can also be used with the bottom-supplied radiators after the removal of a thermostatic valve insert. |
Intermediate connection:The bottom-supplied radiators can be connected simultaneously with the side and bottom connections. Possible are intermediate solutions presented at the drawings: side and flow-through. These solutions correspond to the side and flow-through connections described above. |
Monclac MCK 108 hospital brackets for types: Purmo HV10, HV20, HV30.Brackets of outreach 108 mm |
Required quantities of the Monclac MCK 108 hospital brackets for various types and heights of the PURMO hygienic radiators. table
t z | t p | ti air temperature in the heated room [˚C] | |||||||
---|---|---|---|---|---|---|---|---|---|
[°C] | [°C] | 5 | 8 | 12 | 16 | 18 | 20 | 22 | 24 |
95 | 90 | 0,48 | 0,50 | 0,54 | 0,57 | 0,59 | 0,61 | 0,64 | 0,66 |
85 | 0,50 | 0,52 | 0,56 | 0,60 | 0,62 | 0,64 | 0,67 | 0,70 | |
80 | 0,52 | 0,55 | 0,59 | 0,63 | 0,65 | 0,68 | 0,70 | 0,73 | |
75 | 0,54 | 0,57 | 0,61 | 0,66 | 0,69 | 0,72 | 0,75 | 0,78 | |
70 | 0,57 | 0,60 | 0,65 | 0,70 | 0,73 | 0,76 | 0,79 | 0,83 | |
90 | 85 | 0,52 | 0,55 | 0,58 | 0,63 | 0,65 | 0,67 | 0,70 | 0,73 |
80 | 0,54 | 0,57 | 0,61 | 0,66 | 0,68 | 0,71 | 0,74 | 0,77 | |
75 | 0,57 | 0,60 | 0,64 | 0,69 | 0,72 | 0,75 | 0,78 | 0,82 | |
70 | 0,59 | 0,63 | 0,67 | 0,73 | 0,76 | 0,80 | 0,83 | 0,87 | |
65 | 0,62 | 0,66 | 0,71 | 0,77 | 0,81 | 0,85 | 0,89 | 0,93 | |
85 | 80 | 0,56 | 0,59 | 0,64 | 0,69 | 0,72 | 0,75 | 0,78 | 0,81 |
75 | 0,59 | 0,62 | 0,67 | 0,72 | 0,75 | 0,79 | 0,82 | 0,86 | |
70 | 0,62 | 0,65 | 0,70 | 0,77 | 0,80 | 0,84 | 0,88 | 0,92 | |
65 | 0,65 | 0,69 | 0,75 | 0,81 | 0,85 | 0,89 | 0,94 | 0,99 | |
60 | 0,68 | 0,73 | 0,79 | 0,87 | 0,91 | 0,96 | 1,01 | 1,07 | |
80 | 75 | 0,61 | 0,65 | 0,70 | 0,76 | 0,79 | 0,83 | 0,87 | 0,91 |
70 | 0,64 | 0,68 | 0,74 | 0,81 | 0,84 | 0,88 | 0,93 | 0,97 | |
65 | 0,68 | 0,72 | 0,78 | 0,86 | 0,90 | 0,94 | 0,99 | 1,05 | |
60 | 0,72 | 0,76 | 0,83 | 0,91 | 0,96 | 1,01 | 1,07 | 1,13 | |
55 | 0,76 | 0,81 | 0,89 | 0,98 | 1,04 | 1,10 | 1,16 | 1,24 | |
75 | 70 | 0,67 | 0,72 | 0,78 | 0,85 | 0,89 | 0,94 | 0,98 | 1,04 |
65 | 0,71 | 0,75 | 0,82 | 0,90 | 0,95 | 1,00 | 1,05 | 1,12 | |
60 | 0,75 | 0,80 | 0,88 | 0,97 | 1,02 | 1,08 | 1,14 | 1,21 | |
55 | 0,80 | 0,85 | 0,94 | 1,04 | 1,10 | 1,17 | 1,24 | 1,32 | |
50 | 0,85 | 0,91 | 1,01 | 1,13 | 1,20 | 1,28 | 1,37 | 1,47 | |
70 | 65 | 0,75 | 0,79 | 0,87 | 0,96 | 1,01 | 1,07 | 1,13 | 1,19 |
60 | 0,79 | 0,84 | 0,93 | 1,03 | 1,08 | 1,15 | 1,22 | 1,30 | |
55 | 0,84 | 0,90 | 0,99 | 1,11 | 1,17 | 1,25 | 1,33 | 1,42 | |
50 | 0,89 | 0,96 | 1,07 | 1,20 | 1,28 | 1,37 | 1,47 | 1,58 | |
65 | 60 | 0,83 | 0,89 | 0,98 | 1,10 | 1,16 | 1,23 | 1,31 | 1,40 |
55 | 0,88 | 0,95 | 1,05 | 1,18 | 1,26 | 1,34 | 1,43 | 1,54 | |
50 | 0,94 | 1,02 | 1,14 | 1,29 | 1,37 | 1,47 | 1,59 | 1,71 | |
60 | 55 | 0,94 | 1,01 | 1,13 | 1,27 | 1,36 | 1,45 | 1,56 | 1,68 |
50 | 1,00 | 1,08 | 1,22 | 1,39 | 1,48 | 1,60 | 1,73 | 1,87 | |
45 | 1,08 | 1,17 | 1,33 | 1,53 | 1,65 | 1,78 | 1,94 | 2,13 | |
55 | 50 | 1,07 | 1,16 | 1,31 | 1,50 | 1,62 | 1,75 | 1,90 | 2,07 |
45 | 1,15 | 1,26 | 1,43 | 1,66 | 1,80 | 1,96 | 2,15 | 2,37 | |
40 | 1,25 | 1,37 | 1,59 | 1,86 | 2,03 | 2,24 | 2,48 | 2,78 | |
50 | 45 | 1,23 | 1,36 | 1,56 | 1,82 | 1,98 | 2,17 | 2,40 | 2,67 |
40 | 1,34 | 1,48 | 1,73 | 2,05 | 2,25 | 2,50 | 2,79 | 3,15 | |
35 | 1,47 | 1,65 | 1,94 | 2,36 | 2,63 | 2,96 | 3,38 | 3,92 | |
45 | 40 | 1,45 | 1,62 | 1,90 | 2,28 | 2,53 | 2,83 | 3,19 | 3,66 |
35 | 1,60 | 1,80 | 2,15 | 2,64 | 2,96 | 3,37 | 3,89 | 4,58 | |
40 | 35 | 1,75 | 1,98 | 2,40 | 3,00 | 3,41 | 3,93 | 4,62 | 5,54 |
30 | 1,96 | 2,25 | 2,79 | 3,61 | 4,21 | 5,01 | 6,14 | 7,87 |
The table has been prepared for n = 1,3
