Vertical design radiators - Vertical

Sometimes it´s an issue of space, sometimes a question of taste, and the Vertical is the answer for all those questions. The same heat output and high quality design. The Vertical is also available with accessories such as a towel rail, adding practicality to its functionality.

+

Information :

Heigth (mm) 1500 - 1800 - 1950 - 2100 - 2300
Length (mm) 300 - 450 - 600 - 750
Step 50 mm (hot water channel)
25 mm (convection fins)
Connections 6 x diameter 1/2" (15/21)
Installation U2V Brackets
Accessories U2V Brackets, 2 side covers, installation clips, 1 bore template, 1 rotating airvent, 3 blind stops, screws and plugs.
Packaging The radiators are factory packed in heat shrinkable film. The radiators corners are protected with the plastic covering.
Guarantee 10 Years
Info New 300

Radiators types

Type 10C

Type 20C

Type 21C

Type 22C

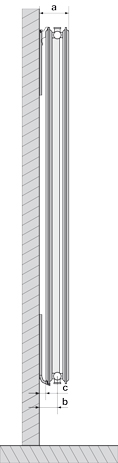

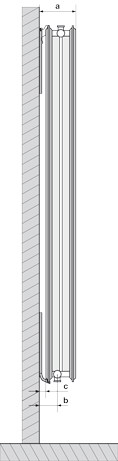

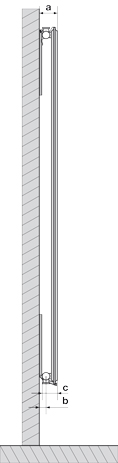

dimensions in mm/type 10C 20C i 21C 22C
a 80 108 133
b 43 67 67
c 65 27 27

Heat outputs and dimensions

Length Watt VR 10C
Height 1500 1800 1950 2100
450 75/65/20°C 650 765 819 876
450 BTU 2219 2611 2795 2989
600 75/65/20°C 867 1020 1092 1168
600 BTU 2959 3481 3727 3985
750 75/65/20°C   1275 1365 1460
750 BTU   4352 4659 4981



Length Watt VR 20C
Height 1800 1950 2100
300 75/65/20°C 819 877 935
300 BTU
450 75/65/20°C 1229 1315 1403
450 BTU 4193 4488 4787
600 75/65/20°C 1638 1753 1870
600 BTU 5590 5984 6383
750 75/65/20°C 2048 2192 2338
750 BTU 6988 7480 7979



Length Watt VR 21C
Height 1800 1950 2100
300 75/65/20°C 963 1020 1081
300 BTU
450 75/65/20°C 1445 1530 1621
450 BTU 4930 5222 5534
600 75/65/20°C 1926 2040 2162
600 BTU 6573 6963 7378
750 75/65/20°C 2408 2550 2702
750 BTU 8217 8703 9223



Length Watt VR 22C
Height 1800 1950 2100 2300
300 75/65/20°C 1132 1192 1252 1332
300 BTU
450 75/65/20°C 1698 1788 1877 1998
450 BTU 5796 6102 6408 6818
600 75/65/20°C 2264 2384 2503 2663
600 BTU 7728 8136 8543 9090
750 75/65/20°C 2830 2980 3129 3329
750 BTU 9660 10170 10679 11363

Water capacity and weight

Volume : L / m

type 1500 1800 1950 2100 2300
10C 9,83 10,13 11,07 12,00
20C   20,13 28,27 36,40
21C   21,47 24,13 25,47
22C   21,60 23,13 24,67 26,67

Weight : kg / m

type 1500 1800 1950 2100 2300
10C 31,33 37,47 38,67 40,13
20C   71,33 77,07 81,73
21C   83,07 91,33 96,93
22C   93,87 102,33 110,80 118,27

Types of connections

Other connections are not possible.

Brackets

Dimensions in mm

C 300 450 600 750
C1 75 100 175 250
C2 50 125 200 275
B 1500 1800 1950 2100 2300
B3 1150 1450 1600 1750 1950
B1 T10 = 170 T20-21-22 = 150
B2 T10 = 270 T20-21-22 = 250

Mounting top bracket T10

Mounting top bracket T20-21-22

Corrective factors

Corrective ratios

°C Factor °F
40°C 0.75 72°F
45°C 0.88 81°F
50°C 1 90°F
55°C 1.13 99°F
60°C 1.25 108°F
65°C 1.39 117°F
70°C 1.51 126°F

Stock Profile Borchure - July 2017

Each PURMO is guaranteed for ten years from the date of installation against defects caused by faulty materials or manufacture. We replace the defective product with a similar or technically corresponding convector.

The guarantee does not cover damages that are due to faulty storage and handling at delivery or installation, nor damages that are due to faulty use of the convector, such as inside and outside rust, use of corrosive substances, too high pressure or damage due to freezing.

This guarantee does not cover incidental damages caused by the Purmo product, costs for change of product, production loss of the customer, loss of profit or other indirect costs.

In case of a guarantee claim the buyer must contact the seller and present some kind of evidence of purchase of the product, for example, order confirmation or delivery note.

The defective product always has to be sent back to Purmo for inspection within one month from the date of complaint, if not otherwise agreed upon.
