Vertical design radiators

Tinos

Vertical design radiators - Tinos

The modern and stylish Tinos is a decorative vertical radiator. Its grand front panel with straight edge sides delivers high heat outputs. Available in a height of 1800mm with a range of widths and types to choose from.

Also available in "special" sizes - please refer to the Tinos Specials Brochure.

+

Information:



Height (mm)

1800mm

Lengths (mm)

475mm – 625mm

 Types Type 11 (83mm) -  Type 21 (107mm)
Fittings

6 x ؽ » (15/21). Other fittings not available.

Supplied With

2 vertical MCW-V wall brackets, 1 x rotating air vent and 3 x blanking caps

Packaging The radiators are factory packed in a heat shrinkable film. The radiators corners are protected with plastic covering.
Guarantee Purmo offers a 10-year guarantee of quality on its entire selection of radiators and floor-heating systems!
 Accessories  Optional accessories include towel bars and valve sets, click here for more information



Heat outputs and dimensions

    Type 11 Type 21
  Height (mm) 1800 1800
Length (mm) Output (Watt & BTU)
475 75/65/20 - Watt 976 1329
  75/65/20 - BTU 3330 4534
  55/35/20 - Watt 509 677
  55/35/20 - BTU 1736 2309
625 75/65/20 - Watt 1298 1772
  75/65/20 - BTU 4428 6046
  55/35/20 - Watt 678 903
  45/35/20 - BTU 2313 3081

Emissions for bottom fitting in accordance with EN 442 - 75/65/20 °C.

Water capacity and weight

Type 11

volume: litre

Width  Height = 1800
475 5.25
625 7.00

value n

Width  Height = 1800
475 1.2761
625 1.2711

weight: kg

Width Height = 1800
475 30.37
625 43.73

bracket position: mm

Width Height = 1800
475 1605
625 1605

Type 21

volume: litre

Width Height = 1800
475 9.66
625 12.88

value n

Width Height = 1800
475 1.3192
625 1.3192

weight: kg

Width Height = 1800
475 45.12
625 60.16

bracket positions: mm

Width Height = 1800
475 1605
625 1605

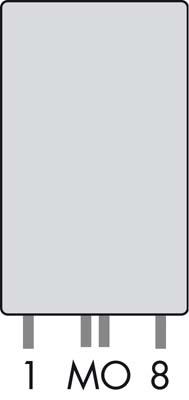

Types of connections



Other connections are not possible.
