Towel warmers

Santorini

Towel warmers - Santorini

Elegant bathroom radiator with a round tube on tube design.

+

Information:

Height (mm) 714 - 1134 - 1764
Width (mm) 500 - 600 - 750 - 900
Accessories: brackets, 1 radiator plug, 1 airvent, screws and plugs
Installation: 3 adjustable hanging brackets to block between the pipes
Connection: 2 x diameter 1/2" (15/21)
Colours: prices are based on white RAL 9016. Other RAL and special colours are available upon request with a 25% supplement.
Guanrantee 10 Years

Accessories

V-KNOB

- per pair

white, PATVPBL, 15.71 £
chrome, PATVPCH, 15.71 £

TOWEL RING

white, ANOPBL, 35.35 £
chrome, ANOPCH, 35.35 £

TOWEL RAIL right 375 mm

white, BARP40BL, 32.41 £
chrome, BARP40CH, 32.41 £

Radiators types

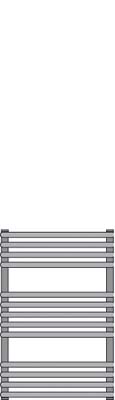

SA..0714

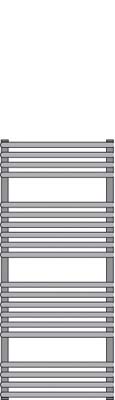

SA..1134

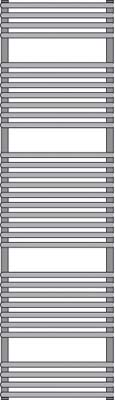

SA..1764

Heat outputs and dimensions

type A B C weight volume 75/65/20°C 55/45/20°C £
(kg) (l) (watt) (watt)
SA05000714 460 714 500 5.90 2.70 374 196 232.78
SA06000714 560 714 600 6.70 3.10 437 223 245.80
SA07500714 710 714 750 8.00 3.70 529 272 273.86
SA05001134 460 1134 500 9.20 4.10 568 289 281.42
SA06001134 560 1134 600 10.50 4.80 663 339 303.58
SA07501134 710 1134 750 12.40 5.70 802 412 331.88
SA05001764 460 1764 500 14.60 6.50 886 447 387.97
SA06001764 560 1764 600 16.70 7.50 1035 523 414.18
SA07501764 710 1764 750 19.70 8.90 1252 635 461.68
SA09001764 860 1764 900 22.80 10.40 1462 745 491.07

according EN 442 - 75/65/20 ̊C (ΔT 50) and 55/45/20 ̊C (ΔT 30)
To calculate from Watts to BTU’s multiply by 3.412 (1000 watts x 3.412 = 3,412 btu’s).

Types of connections

Corrective factors

Corrective ratios

°C Factor °F
40°C 0.75 72°F
45°C 0.88 81°F
50°C 1 90°F
55°C 1.13 99°F
60°C 1.25 108°F
65°C 1.39 117°F
70°C 1.51 126°F

Brackets

A=centre-to-centre connections
B=height
C=width

Accessories

V-KNOB

- per pair

white, PATVRBL, 12.77 £
chrome, PATVRCH, 12.77 £

TOWEL RING

white, ANORBL, 33.39 £
chrome, ANORCH, 33.39 £

ROUND KNOBS

- per pair

white, PATRBL, 12.77 £
chrome, PATRCH, 12.77 £

TOWEL RAIL right 370 mm

length radiator min. 500 mm
white, BARR40BL, 26.52 £
chrome, BARR40CH, 26.52 £

TOWEL RAIL right 470 mm

length radiator min. 600 mm
white, BARR50BL, 30.44 £
chrome, BARR50CH, 30.44 £

Grill

length radiator min. 600 mm
white, GRILLBL, 69.73 £
chrome, GRILLCH, 69.73 £

Each PURMO is guaranteed for ten years from the date of installation against defects caused by faulty materials or manufacture. We replace the defective product with a similar or technically corresponding convector.

The guarantee does not cover damages that are due to faulty storage and handling at delivery or installation, nor damages that are due to faulty use of the convector, such as inside and outside rust, use of corrosive substances, too high pressure or damage due to freezing.

This guarantee does not cover incidental damages caused by the Purmo product, costs for change of product, production loss of the customer, loss of profit or other indirect costs.

In case of a guarantee claim the buyer must contact the seller and present some kind of evidence of purchase of the product, for example, order confirmation or delivery note.

The defective product always has to be sent back to Purmo for inspection within one month from the date of complaint, if not otherwise agreed upon.
