United Kingdom
Towel warmers

Santorini C

Towel warmers - Santorini C

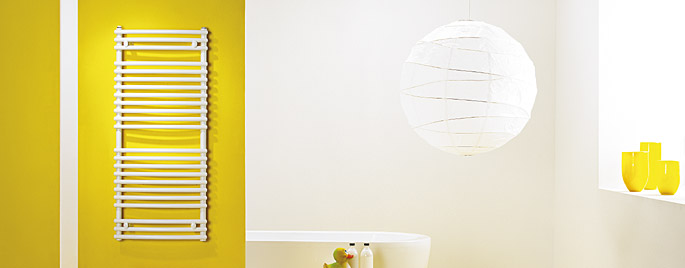

Curved bathroom radiator with a round tube on tube design.

+

Information:

Height (mm) 714 - 1134 - 1764
Width (mm) 500 - 600 - 750 - 900
Accessories: brackets, 1 radiator plug, 1 rotating airvent, screw and plugs.
Installation: 4 adjustable hanging brackets to block between the pipes.
Connection: 2 x diameter 1/2" (15/21)
Working pressure: 10 bar
Colours: prices are based on white RAL 9016. Other RAL and special colours are available upon request with a 25% supplement.
Guarantee 10 Years

Accessories

V-KNOB

- per pair

white, PATVPBL, 15.71 £
chrome, PATVPCH, 15.71 £

TOWEL RING

white, ANOPBL, 35.35 £
chrome, ANOPCH, 35.35 £

TOWEL RAIL right 375 mm

white, BARP40BL, 32.41 £
chrome, BARP40CH, 32.41 £

Radiators types

SAC..0714

SAC..1134

SAC..1764

Heat outputs and dimensions

type A B C X weight volume 75/65/20°C 55/45/20°C £
(kg) (l) (watt) (watt)
SAC05000714 451 714 500 96-119 5.90 2.70 374 196 264.52
SAC06000714 548 714 600 104-127 6.70 3.10 437 223 283.20
SAC07500714 691 714 750 120-143 8.00 3.70 529 272 306.47
SAC05001134 451 1134 500 96-119 9.20 4.10 568 289 320.80
SAC06001134 548 1134 600 104-127 10.50 4.80 663 339 343.52
SAC07501134 691 1134 750 120-143 12.40 5.70 802 412 380.68
SAC05001764 451 1764 500 96-119 14.60 6.50 886 447 440.88
SAC06001764 548 1764 600 104-127 16.70 7.50 1035 523 475.08
SAC07501764 691 1764 750 120-143 19.70 8.90 1252 635 521.25
SAC09001764 835 1764 900 138-160 22.80 10.40 1462 745 561.21

according EN 442 - 75/65/20 ̊C (ΔT 50) and 55/45/20 ̊C (ΔT 30)
To calculate from Watts to BTU’s multiply by 3.412 (1000 watts x 3.412 = 3,412 btu’s).

Types of connections

Supply and return can be switched left / right.

Corrective factors

Corrective ratios

°C Factor °F
40°C 0.75 72°F
45°C 0.88 81°F
50°C 1 90°F
55°C 1.13 99°F
60°C 1.25 108°F
65°C 1.39 117°F
70°C 1.51 126°F

Brackets

Top view

A=centre-to-centre connections
B=height
C=width

Accessories

V-KNOB

- per pair

white, PATVRBL, 12.77 £
chrome, PATVRCH, 12.77 £

TOWEL RING

white, ANORBL, 33.39 £
chrome, ANORCH, 33.39 £

ROUND KNOBS

- per pair

white, PATRBL, 12.77 £
chrome, PATRCH, 12.77 £

TOWEL RAIL curved 370 mm

length radiator min. 500 mm
white, BARR40CBL, 29.46 £
chrome, BARR40CCH, 29.46 £

TOWEL RAIL curved 470 mm

length radiator min. 600 mm
white, BARR50CBL, 33.39 £
chrome, BARR50CCH, 33.39 £

Each PURMO is guaranteed for ten years from the date of installation against defects caused by faulty materials or manufacture. We replace the defective product with a similar or technically corresponding convector.

The guarantee does not cover damages that are due to faulty storage and handling at delivery or installation, nor damages that are due to faulty use of the convector, such as inside and outside rust, use of corrosive substances, too high pressure or damage due to freezing.

This guarantee does not cover incidental damages caused by the Purmo product, costs for change of product, production loss of the customer, loss of profit or other indirect costs.

In case of a guarantee claim the buyer must contact the seller and present some kind of evidence of purchase of the product, for example, order confirmation or delivery note.

The defective product always has to be sent back to Purmo for inspection within one month from the date of complaint, if not otherwise agreed upon.
