Towel warmers

Muna

A practical but stylish radiator with flat tubes.

+

Information :

Height (mm) 905 - 1205 - 1655 - 1730 - 2030
Width (mm) 500 - 600 - 800
Accessories: brackets, 1 radiator plug , 1 airvent.
Installation: 4 welded-on hanging strips for 4 adjustable wall brackets.
Connection: 2 x diameter 1/2" (15/21)
Diameter connections: supply and return Ø ½" (15/21)
Working pressure: 4 bar
Max. working temperature: 110°C
Colours: prices are based on white RAL 9016. Other RAL and special colours are available upon request with a 25% supplement.
Guarantee 10 Years

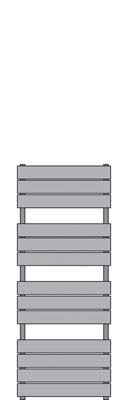

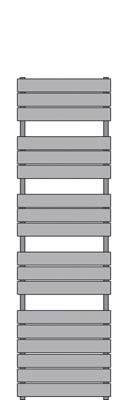

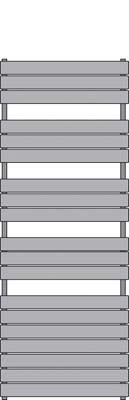

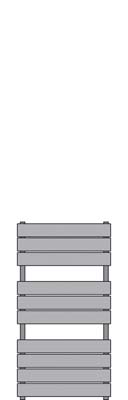

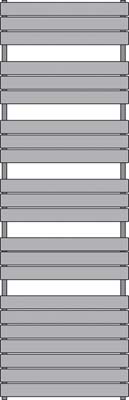

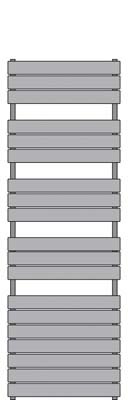

Radiators types

MU0905..

MU1205..

MU1655..

MU1730..

MU2030..

Heat outputs and dimensions

type A B C D X weight volume 75/65/20°C 55/45/20°C £
(kg) (l) (watt) (watt)
MU09050500 447 905 500 438 620 10.80 4.80 470 254 291.97
MU12050500 447 1205 500 438 990 14.10 6.30 602 320 373.89
MU16550500 447 1655 500 438 1460 19.40 8.60 815 435 492.21
MU17300600 547 1730 600 538 1460 23.10 10.30 987 526 568.53
MU17300800 747 1730 800 738 1460 29.10 12.30 1311 696 639.38
MU20300800 747 2030 800 738 1790 33.60 14.40 1464 787 683.70

according EN 442 - 75/65/20 ̊C (ΔT 50) and 55/45/20 ̊C (ΔT 30)
To calculate from Watts to BTU’s multiply by 3.412 (1000 watts x 3.412 = 3,412 btu’s).

Types of connections

Supply and return always at the bottom, can be switched left/right.

Corrective factors

Corrective ratios

°C Factor °F
40°C 0.75 72°F
45°C 0.88 81°F
50°C 1 90°F
55°C 1.13 99°F
60°C 1.25 108°F
65°C 1.39 117°F
70°C 1.51 126°F

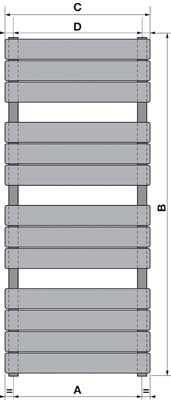

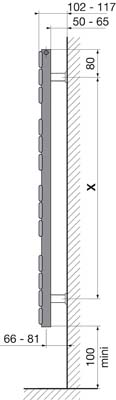

Brackets





A = Centre-to-centre connection
B = Height
C = Length
D = Centre-to-centre connections HORI
X = Centre-to-centre connections VERTI

Accessories

V-KNOB

- per pair

white, PATVPBL, 15.71 £
chrome, PATVPCH, 15.71 £

TOWEL RING

white, ANOPBL, 35.35 £
chrome, ANOPCH, 35.35 £

TOWEL RAIL right 375 mm

white, BARP40BL, 32.41 £
chrome, BARP40CH, 32.41 £

Muna Specials Brochure - July 2017

Each PURMO is guaranteed for ten years from the date of installation against defects caused by faulty materials or manufacture. We replace the defective product with a similar or technically corresponding convector.

The guarantee does not cover damages that are due to faulty storage and handling at delivery or installation, nor damages that are due to faulty use of the convector, such as inside and outside rust, use of corrosive substances, too high pressure or damage due to freezing.

This guarantee does not cover incidental damages caused by the Purmo product, costs for change of product, production loss of the customer, loss of profit or other indirect costs.

In case of a guarantee claim the buyer must contact the seller and present some kind of evidence of purchase of the product, for example, order confirmation or delivery note.

The defective product always has to be sent back to Purmo for inspection within one month from the date of complaint, if not otherwise agreed upon.
