Towel warmers

Linosa

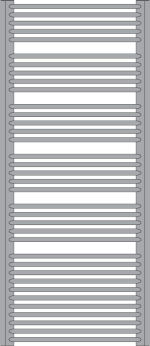

Towel warmers - Linosa

The bathroom heater unit to suit your own arrangement with decorative strips. Fits perfectly into any bathroom.

+

Information :

Height (mm) 776 - 1154 - 1742
Width (mm) 500 - 595 - 749
Accessories: brackets, 1 airvent 1/8"
Installation: 4 welded-on hanging strips for 4 wall brackets.
Connection: 2 x 1/2"
Working pressure: 4 bar
Max. temperature: 95°C
Rotating airvent: Ø 1/8"
Choice of decorative strips: stainless steel (S) or wood finish (W)
Colours: prices are based on RAL 9016 half-matt white. Other RAL and special colours are available upon request with a 25% supplement.
Guarantee 10 Years

Radiators types

LI0776..

LI1154..

LI1744..

Heat outputs sand dimensions

type A B C D X weight volume 75/65/20°C 55/45/20°C £
(kg) (l) (watt) (watt)
LI07760500W 465 776 500 413 588 8.00 3.90 342 184 325.28
LI07760500S 465 776 500 413 588 8.00 3.90 342 184 325.28
LI11540500W 465 1154 500 413 966 11.40 5.70 498 266 376.08
LI11540500S 465 1154 500 413 11.40 5.70 498 266 376.08
LI11540595W 563 1154 595 508 966 12.80 6.40 593 318 411.99
LI11540595S 563 1154 595 508 966 12.80 6.40 593 318 411.99
LI11540749W 716 1154 749 662 966 15.10 7.50 746 403 465.62
LI11540749S 716 1154 749 662 966 15.10 7.50 746 403 465.62
LI17420595W 563 1742 595 508 1533 19.40 9.80 917 490 556.91
LI17420595S 563 1742 595 508 1533 19.40 9.80 917 490 556.91
LI17420749W 716 1742 749 662 1533 23.00 11.50 1153 620 714.86
LI17420749S 716 1742 749 662 1533 23.00 11.50 1153 620 714.86

according EN 442 - 75/65/20 ̊C (ΔT 50) and 55/45/20 ̊C (ΔT 30)
To calculate from Watts to BTU’s multiply by 3.412 (1000 watts x 3.412 = 3,412 btu’s).

Types of connections

Diameter connections: mid-connection 2 x ½".
Centre-to-centre connections: 50 mm.

Corrective factors

Corrective ratios

°C Factor °F
40°C 0.75 72°F
45°C 0.88 81°F
50°C 1 90°F
55°C 1.13 99°F
60°C 1.25 108°F
65°C 1.39 117°F
70°C 1.51 126°F

Brackets

Top view

A=centre-to-centre connections
B=height
C=width
D=centre-to-centre brackets HORI
X= centre-to-centre brackets VERTI

Accessories

At the moment, there are no accessoires available.

Each PURMO is guaranteed for ten years from the date of installation against defects caused by faulty materials or manufacture. We replace the defective product with a similar or technically corresponding convector.

The guarantee does not cover damages that are due to faulty storage and handling at delivery or installation, nor damages that are due to faulty use of the convector, such as inside and outside rust, use of corrosive substances, too high pressure or damage due to freezing.

This guarantee does not cover incidental damages caused by the Purmo product, costs for change of product, production loss of the customer, loss of profit or other indirect costs.

In case of a guarantee claim the buyer must contact the seller and present some kind of evidence of purchase of the product, for example, order confirmation or delivery note.

The defective product always has to be sent back to Purmo for inspection within one month from the date of complaint, if not otherwise agreed upon.
