The 200-mm plinth radiator blends perfectly with contemporary architecture. Spaces with large window sections are found today not only in private residences, but also in modern office design. Versions with doublesided front plates offer the perfect heating solution for such spaces.

The high warmth generation and the space-savings offered by this radiator are additional plusses.

PrevNext





Because the connection valve is eccentric in the radiator for type 33, the measure b is 126 in case of left connection.

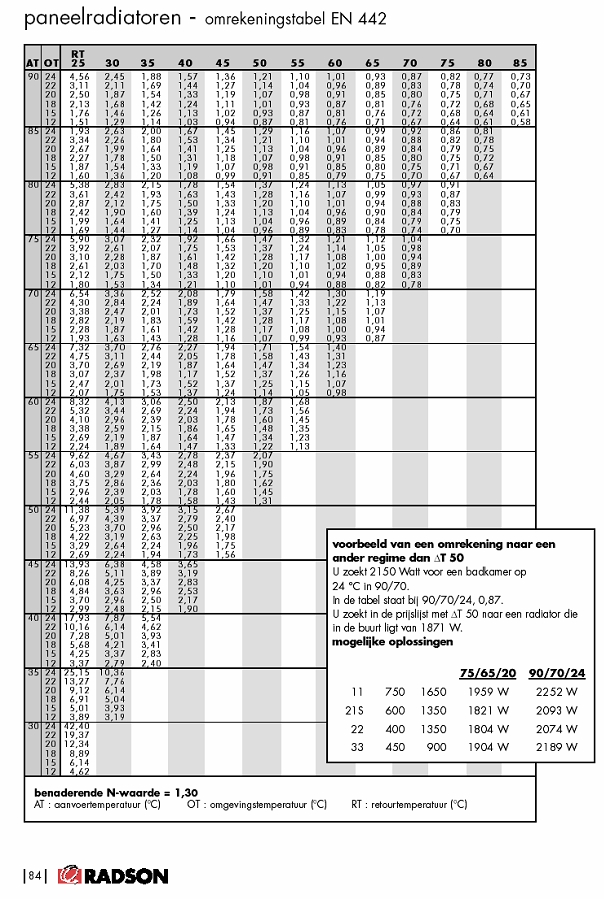

length watt type 22 type 33 type 44
height 200 200 200
600 75/65/20°C 448 644 805
700 75/65/20°C 523 752 939
800 75/65/20°C 598 859 1073
900 75/65/20°C 672 967 1207
1000 75/65/20°C 747 1074 1341
1100 75/65/20°C 822 1181 1475
1200 75/65/20°C 896 1289 1609
1400 75/65/20°C 1046 1504 1877
1600 75/65/20°C 1195 1718 2146
1800 75/65/20°C 1345 1933 2414
2000 75/65/20°C 1494 2148 2682
2300 75/65/20°C 1718 2470 3084
2600 75/65/20°C 1942 2792 3487
3000 75/65/20°C 2241 3222 4023
height Weight : kg/m Volume : l/m
type 22 17,60 2,50
type 33 24,30 3,80
type 44 30,90 5,00



type 22, 33, 44

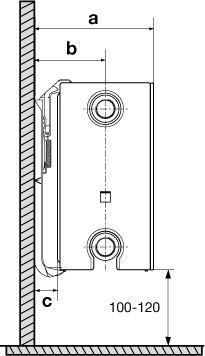

type 22

  • a : 129 mm
  • b : 76 mm
  • c : 25 mm

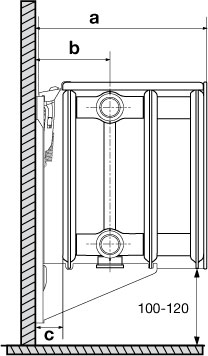

type 33

  • a : 179 mm
  • b : 76 mm
  • c : 25 mm

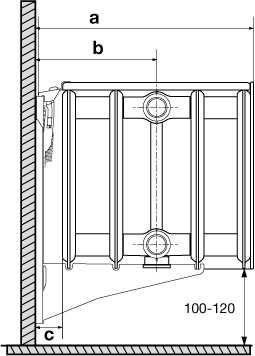

type 44

  • a : 229 mm
  • b : 126 mm
  • c : 25 mm

Usage wall or standing brackets:

  • < 1600 mm : 2 pieces
  • 1600 - 2400 mm : 3 pieces
  • > 2400 mm : 4 pieces



Wall brackets and standing brackets

Wall brackets

type 22   type 22   type 44

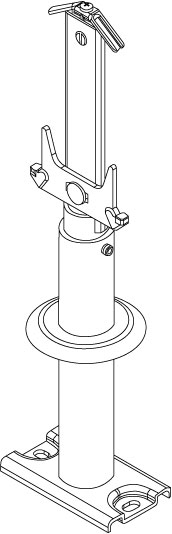

Standing brackets

building on   building in




  type 22 type 33 type 44
  wall foot wall foot wall foot
Integra plinth + + + + + +
Parada plinth + + + + + +
Parada plinth D - + - + - +
Ramo plinth + + + + + +
Ramo plinth D - + - + - +
