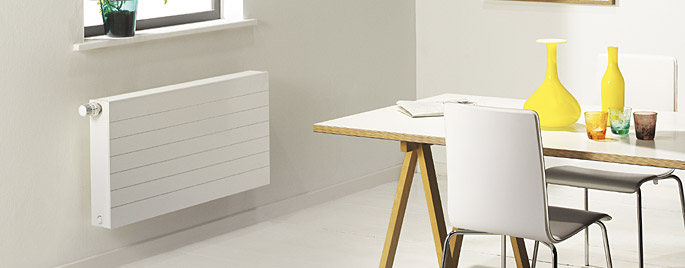

Taut panel radiator also provided with a concealed pipe system and integrated valve body. The Ramo, however, has a sectioned front, straight side panels and a decorative upper grid.

Gallery
Basic specs
Technical data
Downloads
10 years warranty

Prev Next

Information :

Heigth (mm)	400 - 500 - 600 - 750 - 900
Length (mm)	450 - 600 - 750 - 900 - 1050 - 1200 - 1350 - 1500 - 1650 - 1800 - 1950 - 2100
Step	50 mm (hot water channel)
Step	25 mm (convection fins)
Connections	6 x diameter 1/2" (15/21)
Installation	4 or 6 welded-on hanging strips
Accessories	1 drain cock, 2 or 3 Radsoclic consoles, screws and plugs. The hot water pipe system on the right and the KW-adjustable thermostatic valve-body are factory-fitted as well as the de-aerator and 2 blind stops and the mounting brackets.
Packaging	The radiators are factory packed in heat shrinkable film. The radiators corners are protected with the plastic covering.
Guarantee	10 Years

Type 11

Type 21s

Type 22

Type 33

Length	Watt	Type 11
Height		300	400	500	600	750	900
450	75/65/20	242	306	366	424	506	584
450	BTU	826	1044	1250	1447	1728	1994
600	75/65/20	323	408	488	565	675	779
600	BTU	1102	1393	1667	1929	2304	2658
750	75/65/20	404	510	611	707	844	974
750	BTU	1377	1741	2084	2411	2880	3323
900	75/65/20	484	612	733	848	1013	1168
900	BTU	1653	2089	2500	2894	3456	3987
1050	75/65/20	565	714	855	989	1181	1363
1050	BTU	1928	2437	2917	3376	4032	4652
1200	75/65/20	646	816	977	1130	1350	1558
1200	BTU	2203	2785	3334	3858	4608	5316
1350	75/65/20	726	918	1099	1272	1519	1752
1350	BTU	2479	3133	3751	4340	5183	5981
1500	75/65/20	807	1020	1221	1413	1688	1947
1500	BTU	2754	3481	4167	4823	5759	6645
1650	75/65/20	888	1122	1343	1554	1856	2142
1650	BTU	3030	3829	4584	5305	6335	7310

Length	Watt	Type 21S
Height		300	400	500	600	750	900
450	75/65/20	339	421	498	571	676	776
450	BTU	1158	1438	1700	1949	2307	2648
600	75/65/20	452	562	664	761	901	1034
600	BTU	1544	1917	2267	2599	3076	3530
750	75/65/20	566	702	830	952	1127	1293
750	BTU	1930	2396	2834	3248	3845	4413
900	75/65/20	679	842	996	1142	1352	1552
900	BTU	2316	2875	3400	3898	4614	5296
1050	75/65/20	792	983	1162	1332	1577	1810
1050	BTU	2702	3354	3967	4548	5383	6178
1200	75/65/20	905	1123	1328	1523	1802	2069
1200	BTU	3088	3833	4534	5197	6152	7061
1350	75/65/20	1018	1264	1494	1713	2028	2327
1350	BTU	3474	4313	5101	5847	6921	7943
1500	75/65/20	1131	1404	1661	1904	2253	2586
1500	BTU	3860	4792	5667	6497	7689	8826
1650	75/65/20	1244	1544	1827	2094	2478	2845
1650	BTU	4246	5271	6234	7146	8458	9709
1800	75/65/20	1357	1685	1993	2284	2704	3103
1800	BTU	4632	5750	6801	7796	9227	10591
1950	75/65/20	1470	1825	2159	2475	2929	3362
1950	BTU	5018	6229	7367	8446	9996	11474
2100	75/65/20	1583	1966	2325	2665	3154	3620
2100	BTU	5404	6709	7934	9095	10765	12356
2250	75/65/20	1697	2106	2491	2855
2250	BTU	5792	7188	8502	9744
2400	75/65/20	1810	2246	2657	3046
2400	BTU	6178	7666	9068	10396

Length	Watt	Type 22
Height		300	400	500	600	750	900
450	75/65/20	456	569	675	773	911	1037
450	BTU	1556	1943	2302	2639	3109	3540
600	75/65/20	608	759	899	1031	1214	1383
600	BTU	2074	2590	3070	3518	4145	4720
750	75/65/20	760	949	1124	1289	1518	1729
750	BTU	2593	3238	3837	4398	5181	5900
900	75/65/20	912	1139	1349	1546	1822	2075
900	BTU	3112	3886	4604	5277	6217	7080
1050	75/65/20	1064	1328	1574	1804	2125	2420
1050	BTU	3630	4533	5372	6157	7253	8260
1200	75/65/20	1216	1518	1799	2062	2429	2766
1200	BTU	4149	5181	6139	7036	8289	9440
1350	75/65/20	1368	1708	2024	2319	2732	3112
1350	BTU	4667	5829	6907	7916	9326	10620
1500	75/65/20	1520	1898	2249	2577	3036	3458
1500	BTU	5186	6476	7674	8795	10362	11800
1650	75/65/20	1671	2087	2473	2835	3340	3803
1650	BTU	5705	7124	8442	9675	11398	12980
1800	75/65/20	1823	2277	2698	3092	3643	4149
1800	BTU	6223	7771	9209	10554	12434	14161
1950	75/65/20	1975	2467	2923	3350	3947	4495
1950	BTU	6742	8419	9976	11434	13470	15341
2100	75/65/20	2127	2657	3148	3608	4250	4841
2100	BTU	7260	9067	10744	12313	14507	16521
2250	75/65/20	2279	2846	3373	3866
2250	BTU	7778	9713	11512	13195
2400	75/65/20	2431	3036	3598	4123
2400	BTU	8297	10362	12280	14072
2550	75/65/20	2583	3226	3822	4381
2550	BTU	8816	11010	13044	14952

Length	Watt	Type 33
Height		300	400	500	600	750	900
450	75/65/20	638	810	970	1120	1329	1521
450	BTU	2176	2763	3310	3823	4535	5190
600	75/65/20	850	1079	1293	1493	1772	2027
600	BTU	2902	3684	4413	5097	6047	6920
750	75/65/20	1063	1349	1616	1867	2215	2534
750	BTU	3627	4605	5516	6371	7559	8649
900	75/65/20	1275	1619	1940	2240	2658	3041
900	BTU	4353	5526	6620	7645	9071	10379
1050	75/65/20	1488	1889	2263	2613	3101	3548
1050	BTU	5078	6447	7723	8920	10583	12109
1200	75/65/20	1700	2159	2586	2987	3544	4055
1200	BTU	5803	7368	8826	10194	12094	13839
1350	75/65/20	1913	2429	2909	3360	3987	4562
1350	BTU	6529	8289	9929	11468	13606	15569
1500	75/65/20	2126	2699	3233	3734	4430	5069
1500	BTU	7254	9210	11033	12742	15118	17299
1650	75/65/20	2338	2968	3556	4107	4872	5575
1650	BTU	7980	10131	12136	14017	16630	19029
1800	75/65/20	2551	3238	3879	4480	5315	6082
1800	BTU	8705	11052	13239	15291	18141	20759
1950	75/65/20	2763	3508	4202	4854	5758	6589
1950	BTU	9431	11973	14342	16565	19653	22488
2100	75/65/20	2976	3778	4526	5227	6201	7096
2100	BTU	10156	12894	15446	17839	21165	24218
2250	75/65/20	3188	4048	4849	5600
2250	BTU	10881	13816	16550	19113
2400	75/65/20	3401	4318	5172	5974
2400	BTU	11608	14737	17652	20389
2550	75/65/20	3613	4587	5495	6347
2550	BTU	12331	15655	18754	21662
2700	75/65/20	3826	4857	5819	6720
2700	BTU	13058	16577	19860	23277
3000	75/65/20	4251	5397	6465	7467
3000	BTU	14509	18420	22065	25485

Volume : L / m

type	300	400	500	600	750	900
11	1,80	2,42	3,04	3,67	4,60	5,53
21s	4,00	5,17	6,33	7,50	9,35	11,20
22	3,71	4,89	6,06	7,24	9,00	10,76
33	5,52	7,30	9,08	10,86	13,52	16,19

Weight : kg / m

type	300	400	500	600	750	900
11	9,60	12,82	16,04	19,27	24,10	28,93
21s	15,60	21,17	26,73	32,30	39,45	46,60
22	17,90	23,78	29,65	35,52	44,33	53,14
33	26,67	35,84	45,02	54,19	67,95	81,71

Connections

Connection possibilities WITH thermostatic valve.

Right

Left

Connection WITHOUT integrated thermostatic valve is possible.

b = Height - c = Length

Type 11
a : 98 mm
b : 62 mm
c : 37 mm

Type 21S
a : 109 mm
b : 71 mm
c : 37 mm

Type 22
a : 145 mm
b : 89 mm
c : 37 mm

Type 33
a : 211 mm
b : 89 mm
c : 37 mm

MCW-5 brackets

B = height

Corrective ratios

°C	Factor	°F
40°C	0.75	72°F
45°C	0.88	81°F
50°C	1	90°F
55°C	1.13	99°F
60°C	1.25	108°F
65°C	1.39	117°F
70°C	1.51	126°F

Each PURMO is guaranteed for ten years from the date of installation against defects caused by faulty materials or manufacture. We replace the defective product with a similar or technically corresponding convector.

The guarantee does not cover damages that are due to faulty storage and handling at delivery or installation, nor damages that are due to faulty use of the convector, such as inside and outside rust, use of corrosive substances, too high pressure or damage due to freezing.

This guarantee does not cover incidental damages caused by the Purmo product, costs for change of product, production loss of the customer, loss of profit or other indirect costs.

In case of a guarantee claim the buyer must contact the seller and present some kind of evidence of purchase of the product, for example, order confirmation or delivery note.

The defective product always has to be sent back to Purmo for inspection within one month from the date of complaint, if not otherwise agreed upon.
