Horizontal design-radiators - Faro H

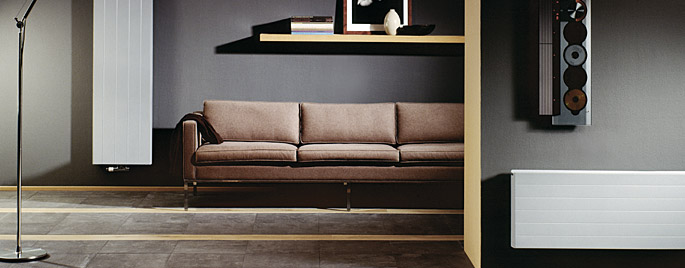

Horizontal decorative radiator with a sectioned front and unique slightly curved sides. This horizontal model is provided with an adapted top cover finishing that emphasises its unique design.

PrevNext

Information:

Height (mm) 400 - 600 - 750 - 900
Length (mm) 450 - 600 - 750 - 900 - 1050 - 1200 - 1350 - 1500 - 1650 - 1800 - 1950
Step 50 mm (hot water channell)
25 mm (convection fins)
Connections 2 x diameter 1/2" (15/21)
Installation Without welded mounting brackets but with concealed „Monclac”
Accessories 2 Monclac consoles, screws and plugs.
Packaging The radiators are factory packed in heat shrinkable film. The radiators corners are protected with the plastic covering.
Guarantee 10 Years

Type 20



Type 21




Type 22



Type 33




Length Watt Type 20
Height 400 600 750 900
450 75/65/20 279 386 463 539
600 75/65/20 373 515 617 718
750 75/65/20 466 644 772 898
900 75/65/20 559 772 926 1077
1050 75/65/20 652 901 1080 1257
1200 75/65/20 745 1030 1235 1436
1350 75/65/20 838 1158 1389 1616
1500 75/65/20 932 1287 1544 1796
1650 75/65/20 1025 1416
1800 75/65/20 1118 1544
1950 75/65/20 1211 1673



Length Watt Type 21
Height 400 600 750 900
450 75/65/20 445 602 701 802
600 75/65/20 593 802 934 1070
750 75/65/20 742 1003 1168 1337
900 75/65/20 890 1203 1401 1605
1050 75/65/20 1038 1404 1635 1872
1200 75/65/20 1187 1604 1868 2140
1350 75/65/20 1335 1805 2102 2407
1500 75/65/20 1484 2006 2336 2675
1650 75/65/20 1632 2206
1800 75/65/20 1780 2407
1950 75/65/20 1929 2607



Length Watt Type 22
Height 400 600 750 900
450 75/65/20 573 764 922 1014
600 75/65/20 764 1018 1229 1352
750 75/65/20 955 1273 1536 1690
900 75/65/20 1146 1527 1843 2028
1050 75/65/20 1337 1782 2150 2366
1200 75/65/20 1528 2036 2458 2704
1350 75/65/20 1719 2291 2765 3042
1500 75/65/20 1910 2546 3072 3380
1650 75/65/20 2100 2800
1800 75/65/20 2291 3055
1950 75/65/20 2482 3309

Length Watt Type 33
Height 400 600 750 900
450 75/65/20 794 1100 1291 1454
600 75/65/20 1059 1466 1721 1939
750 75/65/20 1324 1833 2152 2423
900 75/65/20 1589 2200 2582 2908
1050 75/65/20 1853 2566 3012 3393
1200 75/65/20 2118 2933 3443 3877
1350 75/65/20 2383 3299 3873 4362
1500 75/65/20 2648 3666 4304 4847
1650 75/65/20 2912 4033
1800 75/65/20 3177 4399
1950 75/65/20 3442 4766



volume : l/m
height 400 600 750 900
type 21 & 22 4,76 6,95 8,67 10,38

weight : kg/m
height 400 600 750 900
type 21 26,64 39,47 48,67 57,83
type 22 29,24 42,67 53,52 64,38

Aansluitingen




Linkse aansluiting op aanvraag

Andere aansluitingen zijn niet mogelijk.

Aansluiting : 2 x Φ ½” (15/21) – onder rechts




Narrow assembly

X1 = 24 mm



Wide assembly

X1 = 39,5 mm



Type 20
a: 141 mm
b: 84 mm
c: 30 mm

Type 21
a: 141 mm
b: 84 mm
c: 30 mm

Type 22
a: 141 mm
b: 84 mm
c: 30 mm

Type 33
a: 206 mm
b: 84 mm
c: 30 mm

Type 20
a: 157 mm
b: 100 mm
c: 46 mm

Type 21
a: 157 mm
b: 100 mm
c: 46 mm

Type 22
a: 157 mm
b: 100 mm
c: 46 mm

Type 33
a: 222 mm
b: 100 mm
c: 46 mm



MCW-5 brackets



B = height
