Column radiators - Delta Laserline

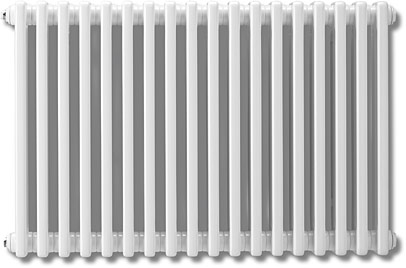

The PURMO Delta Laserline radiator is a stylish, contemporary twist on the conventional steel column radiator of days gone by. The Delta Laserline can create a traditional look in a modern apartment, or give a sophisticated take on an old design for a conservatory. Choosing a radiator that has the style to finish off a beautiful space, yet doesn’t break the budget, has always been a challenge – until now.

Gallery
Basic specs
Technical data
Downloads
10 years warranty

Prev Next

Information

Approval and certification:	Manufactured and tested to EN442
Material:	Precision, D-profile steel tube is used for all outside surfaces, which ensures high outputs, and soft, rounded edges for maximum safety.
Manufacture process:	The radiator is manufactured using a unique laser welding process that virtually eliminates the visible welding points associated with the traditional methods of manufacturing this type of radiator. The clean finish significantly enhances the aesthetic qualities of the radiator.
Colour:	White, RAL 9016
Working pressure:	10 bar (tested to 13 bar)
Heights (mm):	155, 300, 350, 400, 450, 500, 550, 600, 750, 900, 1000, 1100, 1200, 1500, 1800, 2000, 2200, 2500, 2800, 3000
Depths (mm):	63 (1 column), 101 (2 columns), 139 (4 columns), 177 (5 columns), 215 (6 columns)
Lengths (mm):	600 - 1800
Water temperature:	0°C - 120°C
pH value:	Between 7 - 9
Systems:	To be used on two pipe, indirect or closed circuit heating systems. The system should be designed in accordance with BS 5449 or BS 6880 as appropriate.
Guarantee:	Five years

Output per section Watts Δt=50K°C

All heights and widths in mm

Height		155	300	350	400	450
Columns	Width
2	63	12.7	25.2	29.0	32.6	36.3
3	101	17.5	35.4	40.5	45.5	50.5
4	139	22.8	45.6	52.0	58.4	64.7
5	177	28.7	56.0	64.0	71.9	79.6
6	215	34.8	66.4	75.9	85.3	94.6

Height		500	550	600	750	900
Columns	Width
2	63	39.9	43.5	47.0	57.7	68.2
3	101	55.4	60.3	65.1	79.4	93.6
4	139	70.9	77.0	83.1	101.2	118.9
5	177	87.3	94.9	102.5	124.8	146.8
6	215	103.8	112.8	121.8	148.5	174.7

Height		1000	1100	1200	1500	1800
Columns	Width
2	63	75.3	82.3	89.4	110.6	132.2
3	101	103.0	112.3	121.7	149.8	178.1
4	139	130.7	142.4	154.0	189.0	223.9
5	177	161.3	175.8	190.2	233.2	276.1
6	215	192.0	209.2	226.3	277.4	328.4

Height		2000	2200	2500	2800	3000
Columns	Width
2	63	146.8	161.6	184.2	207.4	223.1
3	101	197.1	216.3	245.4	275.1	295.2
4	139	247.4	270.9	306.6	342.8	367.3
5	177	304.9	333.7	377.2	421.2	450.8
6	215	362.3	396.4	447.8	499.5	534.3

Water Volume Litres

Height		155	300	350	400	450
Columns	Width
2	63	0.27	0.40	0.44	0.49	0.53
3	101	0.39	0.57	0.64	0.70	0.76
4	139	0.51	0.75	0.83	0.91	1.00
5	177	0.62	0.93	1.03	1.14	1.25
6	215	0.75	1.11	1.24	1.37	1.50

Height		500	550	600	750	900
Columns	Width
2	63	0.57	0.62	0.66	0.79	0.93
3	101	0.83	0.89	0.95	1.15	1.34
4	139	1.08	1.16	1.25	1.50	1.75
5	177	1.35	1.46	1.56	1.87	2.18
6	215	1.62	1.75	1.88	2.25	2.61

Height		1000	1100	1200	1500	1800
Columns	Width
2	63	1.01	1.11	1.19	1.45	1.71
3	101	1.47	1.60	1.73	2.11	2.49
4	139	1.92	2.09	2.26	2.77	3.27
5	177	2.39	2.59	2.80	3.41	4.02
6	215	2.85	3.09	3.33	4.05	4.78

Height		2000	2200	2500	2800	3000
Columns	Width
2	63	1.88	2.05	2.31	2.57	2.75
3	101	2.74	2.98	3.35	3.70	3.93
4	139	3.60	3.92	4.38	4.82	5.10
5	177	4.44	4.85	5.49	6.14	6.58
6	215	5.28	5.79	6.59	7.45	8.06

Weight kg gross

Height		155	300	350	400	450
Columns	Width
2	63	0.31	0.54	0.62	0.70	0.78
3	101	0.46	0.79	0.91	1.02	1.14
4	139	0.62	1.05	1.20	1.35	1.50
5	177	0.77	1.31	1.49	1.67	1.86
6	215	0.92	1.56	1.78	2.00	2.21

Height		500	550	600	750	900
Columns	Width
2	63	0.86	0.94	1.02	1.26	1.50
3	101	1.25	1.37	1.48	1.83	2.18
4	139	1.65	1.80	1.95	2.40	2.85
5	177	2.04	2.22	2.41	2.96	3.52
6	215	2.43	2.65	2.87	3.52	4.18

Height		1000	1100	1200	1500	1800
Columns	Width
2	63	1.66	1.83	1.99	2.47	2.96
3	101	2.41	2.64	2.87	3.57	4.27
4	139	3.15	3.45	3.75	4.66	5.57
5	177	3.89	4.26	4.63	5.75	6.87
6	215	4.62	5.06	5.50	6.83	8.17

Height		2000	2200	2500	2800	3000
Columns	Width
2	63	3.28	3.61	4.09	4.57	4.89
3	101	4.73	5.20	5.91	6.61	7.09
4	139	6.18	6.80	7.72	8.66	9.29
5	177	7.62	8.38	9.52	10.66	11.43
6	215	9.06	9.96	11.31	12.67	13.58

PURMO Delta Laserline radiators have four side connections, which are given the following codes. These are viewed from the front of the radiator:

LT = Left top
LB = Left bottom
RT = Right top
RB = Right bottom

Tapping options

3/8 in. = 38
½ in. = 12
Blank = -
F = flow
R = return
V = air vent
E = drain

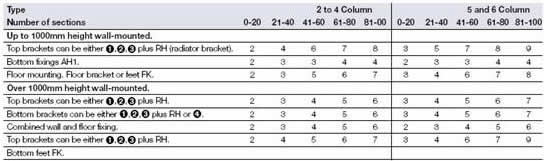

The following table gives recommendations for the number of brackets to be used with each radiator. The strength of the wall should be checked for its load bearing capabilities before installation.

Radiator Bracket RH

Adjustable radiator bracket for use with Angle Bracket RW, Wall Brackets RW, RW1, RK1/RK2.

Angle Brackets RW

For wall mounting, with anti-vibration inserts, white painted with distances from the wall as follows; 20 and 30mm.

Wall Bracket RW1

For wall mounting, with anti-vibration inserts and a choice of distances from the wall as follows; 12, 25, and 35mm.

Wall Bracket RK1/RK2

For wall mounting, with anti-vibration inserts, zinc-plated or painted to RAL 9010. Adjustable distances from the wall.

Spacing Piece AH1

For wall-mounted radiators, in white plastic with zinc thread.

Adjustable Radiator Supports

For wall mounting, with wall plate, and anti-vibration insert, zinc-plated or painted to RAL 9010.

Floor Bracket SK

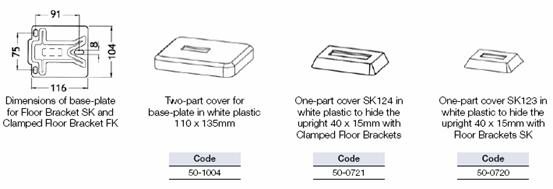

Complete system for free-standing radiators, from 2-6 column up to 1000mm height. Painted to RAL 9010. Comprises; 3mm thick baseplate for fixing to either finished or unfinished floor, upright support 35x10x1.5mm, fixing set with adjustable bracket, security fixing, anti-vibration insert, adjustable bottom support with spacer and security fixing, anti-vibration insert, white plastic end stop for top of upright.

Window Ledge Bracket FT

With adaptor to be used with upright support, painted to RAL 9010, adjustable up to a height of 180mm.

Clamped Floor Bracket FK

Complete system for free-standing radiators, from 2-6 column up to 10wm height. Painted to RAL 9010. Comprises; 3mm thick base-plate fixing for either finished or unfinished floor, anti-vibration support plate 90x70mm, zinc-plated clamp with fixings.



		3-6 column radiators only		For use with 2 column radiators only

Corrective ratios

Δt K	Uf	Δt K	Uf
65	1.408	42	0.796
64	1.380	41	0.771
63	1.352	40	0.747
62	1.324	39	0.723
61	1.296	38	0.699
60	1.268	37	0.675
59	1.241	36	0.651
58	1.213	35	0.627
57	1.186	34	0.604
56	1.159	33	0.581
55	1.132	32	0.558
54	1.105	31	0.535
53	1.079	30	0.513
52	1.052	29	0.491
51	1.026	28	0.469
50	1.000	27	0.447
49	0.974	26	0.426
48	0.948	25	0.404
47	0.922	24	0.383
46	0.897	23	0.363
45	0.871	22	0.342
44	0.846	21	0.322
43	0.821	20	0.302

Each PURMO is guaranteed for ten years from the date of installation against defects caused by faulty materials or manufacture. We replace the defective product with a similar or technically corresponding convector.

The guarantee does not cover damages that are due to faulty storage and handling at delivery or installation, nor damages that are due to faulty use of the convector, such as inside and outside rust, use of corrosive substances, too high pressure or damage due to freezing.

This guarantee does not cover incidental damages caused by the Purmo product, costs for change of product, production loss of the customer, loss of profit or other indirect costs.

In case of a guarantee claim the buyer must contact the seller and present some kind of evidence of purchase of the product, for example, order confirmation or delivery note.

The defective product always has to be sent back to Purmo for inspection within one month from the date of complaint, if not otherwise agreed upon.
