Column radiators

Delta Column Bench

Column radiators - Delta Column Bench

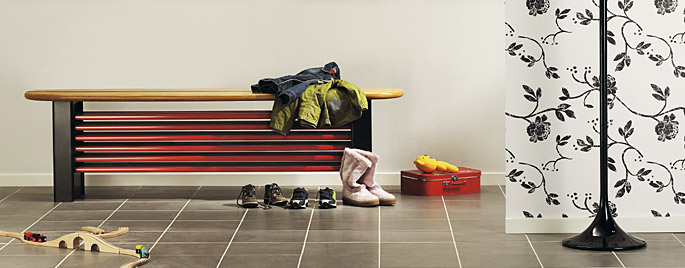

Column radiator as bench (Delta Bar) are fully laser-welded.

The assembly set enables a long-lasting and easy assembly and hiding the connections.

Fixing possibilities for top.

+

Connections

Connections supply 1/2” left bottom, return 1/2” right bottom; with built-in adjustable

thermostat valve and thermostat button, connection fitting M 30 x 1.5 mm left top;

air valve 1/2” right top.

Delivery

With brackets, without top.

Types of connections

Connections supply 1/2” left bottom, return 1/2” right bottom; with built-in adjustable thermostat valve and thermostat button, connection fitting M 30 x 1.5 mm left top; air valve 1/2” right top.

Brackets

Corrective factors

Corrective ratios

Δt K Uf Δt K Uf
65 1.408 42 0.796
64 1.380 41 0.771
63 1.352 40 0.747
62 1.324 39 0.723
61 1.296 38 0.699
60 1.268 37 0.675
59 1.241 36 0.651
58 1.213 35 0.627
57 1.186 34 0.604
56 1.159 33 0.581
55 1.132 32 0.558
54 1.105 31 0.535
53 1.079 30 0.513
52 1.052 29 0.491
51 1.026 28 0.469
50 1.000 27 0.447
49 0.974 26 0.426
48 0.948 25 0.404
47 0.922 24 0.383
46 0.897 23 0.363
45 0.871 22 0.342
44 0.846 21 0.322
43 0.821 20 0.302

Radiators types

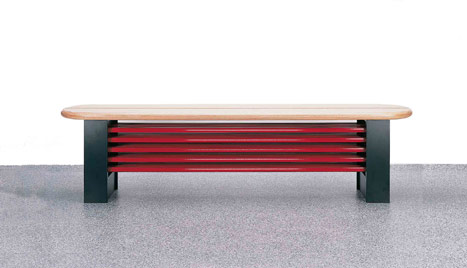

Front

Side

Bottom

Heat outputs and dimensions

Delta Bench verticaal

heights 300 350
number of columns 4 5 4 5
type 4030 5030 4035 5035
elements length   emissions emissions emissions emissions
20 1100 75/65/20°C 912 1120 1040 1280
24 1300 75/65/20°C 1094 1344 1248 1536
28 1500 75/65/20°C 1277 1568 1456 1792

Delta Bench horizontaal

heights 1850 2150 2350 2850 3150
number of columns 6 6 6 6 6
type 6150 6180 6200 6250 6280
elements length   emissions emissions emissions emissions emissions
4 422 75/65/20°C 1411 1696 1886 2362 2648
5 472 75/65/20°C 1742 2097 2334 2929 3287
6 522 75/65/20°C 1934 2337 2606 3285 3695
7 572 75/65/20°C 2204 2670 2982 3770 4247

Water capacity and weight

length 300 350
number of columns 4 5 4 5
type 4030 5030 4035 5035
elements height   emissions emissions emissions emissions
20 1100 weight (empty) - kg 31 37 35 42
    volume - l 15,00 18,60 16,80 20,60
24 1300 weight (empty) - kg 36 42 40 48
    volume - l 18,00 22,40 20,20 24,80
28 1500 weight (empty)) - kg 40 47 45 54
    volume - l 21,00 26,10 23,60 28,90



length 1850 2150 2350 2850 3150
number of columns 6 6 6 6 6
type 6150 6180 6200 6250 6280
elements height   emissions emissions emissions emissions emissions
4 422 weight (empty) - kg 60 69 75 94 104
    volume - l 16,40 19,30 21,30 26,20 29,20
5 472 weight (empty) - kg 68 78 85 106 118
    volume - l 20,40 24,10 26,60 32,80 36,50
6 522 weight (empty) - kg 76 87 95 119 132
    volume - l 24,50 29,00 31,90 39,30 43,80
7 572 weight (empty) - kg 83 96 105 131 146
    volume - l 28,60 33,80 37,20 45,90 51,10

Each PURMO is guaranteed for ten years from the date of installation against defects caused by faulty materials or manufacture. We replace the defective product with a similar or technically corresponding convector.

The guarantee does not cover damages that are due to faulty storage and handling at delivery or installation, nor damages that are due to faulty use of the convector, such as inside and outside rust, use of corrosive substances, too high pressure or damage due to freezing.

This guarantee does not cover incidental damages caused by the Purmo product, costs for change of product, production loss of the customer, loss of profit or other indirect costs.

In case of a guarantee claim the buyer must contact the seller and present some kind of evidence of purchase of the product, for example, order confirmation or delivery note.

The defective product always has to be sent back to Purmo for inspection within one month from the date of complaint, if not otherwise agreed upon.
