PURMO Plan Compact Ventil M

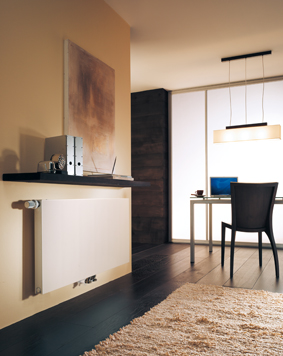

With the Plan Compact Ventil M the trick of combining timeless elegance with the highest functionality has been pulled off. The very minimalist from with a perfectly smooth panel fron is accompanid by a central connection from below, which ensures an impression of symmetry.
Information
| Structure: | EN442.1 and 2 |
| Materiał: | Cold rolled steel |
| Surface process: | The radiator is alkalic degreased, phosphated, dipped in primer (electrical), coated in polyester-epoxy resin powder, stoved (about 200°C). The surface process follows the standard DIN 55900. |
| Colour: | White, RAL 9016 |
| Working pressure: | 10 bar |
| Quality standard: | SFS-EN ISO 9002 |
| Heights (mm): | 300, 400, 500, 600, 900 |
| Lengths (mm): | 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1400, 1600,1800, 2000, 2300, 2600, 3000 |
| Water temperature: | 0°C - 120°C |
| pH value: | between 7 - 9 |
| Connections: | 4x1/2" BSP, ISO 228, at the side + 2x1/2" BSP, ISO 228, at the bottom in the middle, distance 50mm |
| Installation: | Type 11 : Fixing bracket Type 21S,22,33 : FZ brackets |
| Guarantee: | Ten years  |
